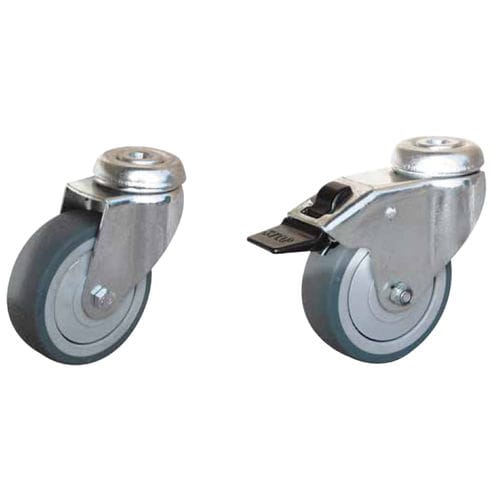

Swivel caster Uniroll TC seriesrodcentral hole fixinglight-duty
Add to favorites
Compare this product
Characteristics
- Type
- swivel
- Mount
- rod
- Other characteristics
- central hole fixing, light-duty, for trolleys, steel, rubber, polypropylene, thermoplastic rubber
- Load capacity
Min.: 40 kg
(88 lb)Max.: 90 kg
(198 lb)- Wheel diameter
Min.: 50 mm
(1.969 in)Max.: 125 mm
(4.921 in)- Tread width
Min.: 17 mm
(0.67 in)Max.: 32 mm
(1.26 in)
Description
APPLICATIONS
Lightweight appliances.
Promotional display stands, lightweight
furniture.
CASTOR ASSEMBLY: • Zinc-plated pressed sheet steel.
LOCKING: • Double-action locking device on wheel and swivel.
SWIVEL: • On two rows of balls.
WHEEL: • Grey non-marking thermoplastic rubber tyre bonded onto a
polypropylene copolymer centre.
HUB: • Plain bearing on Ø 50 and 75 mm and with ball bearing on
Ø 125 mm. • Metal threadguards on Ø 50 mm and grey ABS on Ø
75 to 125 mm. • Demountable axle.
Catalogs
Castors & wheels
140 Pages
