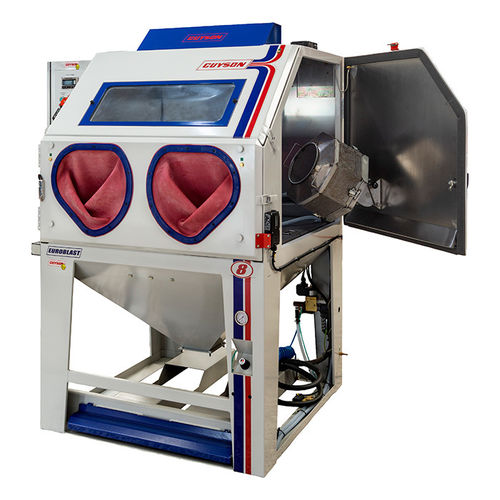

Manual blast cabinet Euroblast Ex series
suctionwith turntablerotary drum

manual blast cabinet
manual blast cabinet
manual blast cabinet
manual blast cabinet
manual blast cabinet
manual blast cabinet
manual blast cabinet
manual blast cabinet
Add to favorites
Compare this product


Characteristics

Technology
suction
Operational mode
manual
Other characteristics
with turntable, rotary drum
Applications
for 3D printing
Width

800 mm, 1,050 mm, 1,480 mm
(31.5 in, 41.3 in, 58.3 in)

Depth

540 mm, 740 mm, 1,050 mm, 1,480 mm
(21 in, 29 in, 41 in, 58 in)

Height

715 mm, 880 mm, 1,145 mm
(28.1 in, 34.6 in, 45.1 in)

Description

Guyson International has worked in partnership with a European nominated body on their ATEX certification scheme to develop a new range of fully ATEX certified blast systems which incorporates a Manual Blast Cabinet, Cyclone Separator and Dust Collector. The Euroblast Ex Range of ATEX blast systems have been certified for use in potentially explosive atmospheres and complies with the requirements of Directive 2014/34/EU-Annex VIII (26th Feb 2014). This is particularly relevant in Additive Manufacturing (AM) applications where the use of fine powders of materials such as Plastic, Aluminium, Titanium and Inconel, can create potentially explosive atmospheres. The ATEX directive demands compliance with essential health and safety requirements and this has been assured by compliance with: EN ISO 80079-36:2016 EN ISO 80079-37:2016 }Euroblast Cabinets, Cyclone and Dust Collector EN 60079-0:2012+A11:2013 PD IEC/TS 60079-46:2017 Euroblast Cabinets and Dust Collector (N/A for Cyclone) Specifically designed for applications that demand ATEX compliance these cabinets include the following safety features: Timed electrical door interlocks, (ATEX rated) Full Earth bonding, both internally & externally ATEX rated electrical equipment and electrical control enclosure ATEX rated pneumatic equipment for blast and air wash controls Triple sealed bearings (for rotary tumble basket option) ATEX rated motor gearbox, (for rotary tumble basket option) Conductive internal surfaces With these safety features the Euroblast Ex range of ATEX blast cabinets have attained the following ATEX coding: II 2/3 D Ex 60079-46 IIIC T135°C Db/Dc Tamb -15°C to +40°C
