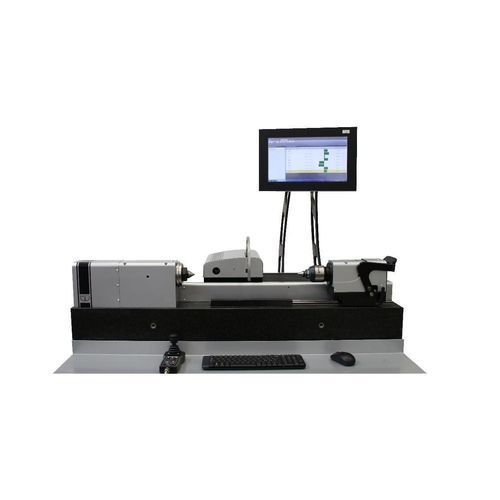

Quality calibration and test bench T-SHAFT MATIC

dimensionscalibrationcomputer-controlled

Product overview
T-SHAFT MATIC is a modular bench for shaft measurement on the shop floor, available in GMT500 and GMT1000 versions. It supports manual checks and fully automatic series inspection via Smart Self Learning (SSL), which programs automatic cycles from a single manual measurement. The system is designed for fast setup, simple operation and integration with production reporting.

Key features

• Designed for workshop / production environment
• Manual mode and Automatic mode with Smart Self Learning (SSL)
• Constant, adjustable measuring force on Z and X axes
• Customizable hardware and software options
• Simple user interface and rapid setup
• Customizable measurement reports and data logging
• Easy calibration of axes
• Suitable for medium to high volume series inspection

Technical specifications

• Models: GMT500, GMT1000
• Measuring range Z (length): GMT500 = 0–500 mm; GMT1000 = 0–1000 mm
• Measuring range X (diameter): GMT500 = 1–120 mm; GMT1000 = 1–150 mm
• Max permissible error (length Z): 3 + L(mm)/100 µm (both models)
• Max permissible error (diameter X): 2 + D(mm)/100 µm (both models)
• Repeatability (length Z, 2s): ≤ 3 µm
• Repeatability (diameter X): ≤ 2 µm
• Resolution (Z and X): 0.001 mm
• Measuring force (Z ; X): 3 N ; adjustable
• Max shaft weight: GMT500 = 60 kg; GMT1000 = 75 kg
• Instrument weight: GMT500 = 410 kg; GMT1000 = 610 kg

Applications

• 100% in-line quality control of shafts and cylindrical components
• Workshop-level final inspection near machining centers
• High-volume batch inspection and statistical process control
• Integration with quality reporting and traceability workflows
