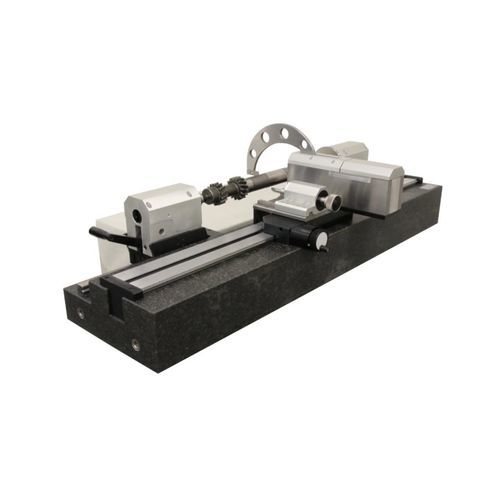

Displacement calibration bench T-SHAFT MAN

distanceprecisionmanual

Overview
T-SHAFT MAN is a manual measuring bench designed for fast, workshop-level inspection of shafts. Diameter (X) and length (Z) axes are positioned and operated by the operator; repeatability is ensured by a dedicated mechanical system. Available in GM500 and GM1000 variants and can be customised to customer specifications.

Product type
Manual measuring machine for shafts

Technical table
T-SHAFT MAN | | GM500 | GM1000
Measuring range, length Z | mm | 0-500 | 0-1000
Measuring range, diameter X | mm | 1-120 | 1-150
Max permissible error, length Z | µm | 4 + L(mm)/100 | 4 + L(mm)/100
Max permissible error, diameter X | µm | 3 + D(mm)/100 | 3 + D(mm)/100
Repeatability, length Z (2s) | µm | ≤4 | ≤4
Repeatability, diameter X | µm | ≤3 | ≤3
Resolution, length Z | mm | 0.001 | 0.001
Resolution, diameter X | mm | 0.001 | 0.001
Measuring force Z; X | N | manual | manual
Max weight of shaft | Kg | 25 | 45
Weight of instrument | Kg | 200 | 390

Technical features

• Models: GM500 (Z 0–500 mm) and GM1000 (Z 0–1000 mm)
• Measuring range (diameter X): GM500 = 1–120 mm; GM1000 = 1–150 mm
• Max permissible error (length Z): 4 + L(mm)/100 µm (both models)
• Max permissible error (diameter X): 3 + D(mm)/100 µm (both models)
• Repeatability (length Z, 2s): ≤4 µm; Repeatability (diameter X): ≤3 µm
• Resolution on both axes: 0.001 mm
• Measuring force on Z and X axes: manual
• Max shaft weight: GM500 = 25 Kg; GM1000 = 45 Kg
• Instrument weight: GM500 = 200 Kg; GM1000 = 390 Kg
• Designed for rapid in-workshop measurements with options for customer-specific configuration
