3-phase motor YXN56-D seriesasynchronous230 Vwashdown
Add to favorites
Compare this product
Characteristics
- AC/DC
- 3-phase
- Type
- asynchronous
- Voltage
- 230 V
- Protection class
- washdown
- Configuration
- stainless steel
- Power
Min.: 0.33 ch
(0.33 hp)Max.: 3 ch
(3 hp)- Rotational speed
1,800 rpm, 3,600 rpm
(11,309.73 rad.min-1, 22,619.47 rad.min-1)
Description

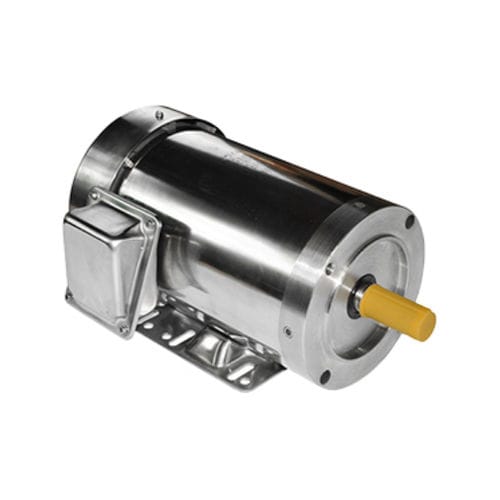

Stainless Steel Motor-3 Phase Washdown Duty-56&145T
GW 3 Phase Washdown Duty Stainless Steel Motors have waterproof seals on shaft extensions The 3 Phase Washdown Duty Stainless Steel Motor Drain has holes in endbells to facilitate draining in any mounting position
1. INVERTER RATED - 6-60HZ CT, VT / PWM VFD 1.0 S.F.
2. Waterproof seals on shaft extensions
3. Drain holes (4) in endbells to facilitate draining in any mounting position
4. T-drain (1) comes installed in non-shaft endbell at base position - can be relocated.
5. 2nd T-drain for shaft end provided for customer installation at proper drainage point.
6. Output HP: 0.33 to 3.0 HP
7. Speed : 1800rpm; 3600rpm
8. Frame : 56 & 145t
9. Voltage : 230/460V
10. Frequency : 60 Hz
GW Industry 3 Phase Washdown Duty Stainless Steel Motors are high quality and perfect performance. The electric motors can be customized according to your needs.
