Electric torque wrench Operator ®compactwith touchscreensquare drive
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Other characteristics
- compact, with touchscreen, square drive, angle/torque, electronic, digital, for production
- Torque
Max.: 300 Nm
(221.2686 ft.lb)Min.: 2 Nm
(1.4751 ft.lb)
Description
Short description
The electronic torque/angle tool for assembly lines and robot-guided screw connections, with PLC communication capabilities.
Performance characteristics
Highlights
Downloads
Technical data sheet available in German and English.
For everyone who wants to know exactly
Access to complete technical documentation is provided to support fact-based procurement decisions and ensure transparency during specification and integration.
Technical specifications
The electronic torque/angle tool for assembly lines and robot-guided screw connections, with PLC communication capabilities.
Performance characteristics
- Torque measuring range: 2 - 300 N·m
- Control modes: torque control, angle of rotation control, yield point control

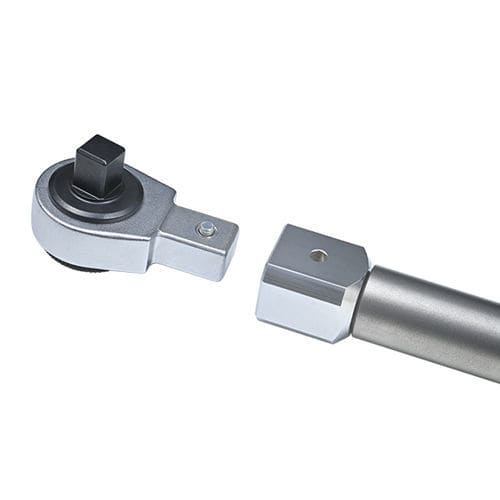

- Interchangeable square drive for insert tools
- Communication protocol for external controllers
- Digital inputs and outputs for PLC/robot controller integration
- Bidirectional serial communication via RS232 or RS422
- User interface: intuitive graphical touch display
Highlights
- Interchangeable square drive system
- Touch display for operation and parameterization
- Compact handheld tools available
Downloads
Technical data sheet available in German and English.
For everyone who wants to know exactly
Access to complete technical documentation is provided to support fact-based procurement decisions and ensure transparency during specification and integration.
Technical specifications
- Torque measuring range: 2 - 300 N·m
- Control functions: torque control, angle control, yield point control
- Drive interface: interchangeable square drive for insert bits
- Communication: protocol for external controllers; bidirectional RS232 / RS422
- Interfaces: digital inputs/outputs for PLC and robot controllers
- HMI: graphical touch display
- Application: designed for assembly lines and robot-guided screw connections
