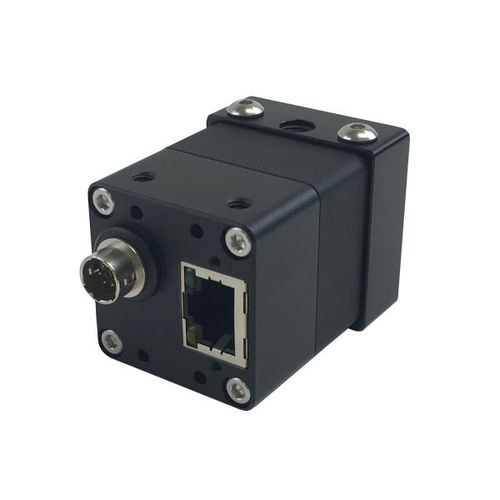

Monitoring camera BA-CAM®
CMOSmicrobolometerGigE

monitoring camera
monitoring camera
Add to favorites
Compare this product


Characteristics

Function
monitoring
Sensor
CMOS, microbolometer
Interface
GigE

Description

The Beam Analyzer (BA-CAM) Laser Beam Profiling system and software enables “real-time” laser beam measurement, analysis and monitoring of CW and pulsed lasers. Laser Beam Profiling SystemThe system design is based on the international standards ISO 11146 and ISO 13694 which relate to lasers and laser related equipment and laser beam spatial metrics. In every laser application, the laser beam profile provides valuable information for the most efficient use of the laser. By monitoring the laser beams spatial profile, circularity, centroid, astigmatism and M2 values, you have early warning of any problems with the laser and entire beam delivery optical system. This relates to increased quality, process reliability, and reduced scrap. The Laser Beam Profiling system is modular in design and can be configured for most applications and laser wavelengths. The design contains no “moving components” and provides instantaneous measurements and analysis of the laser beam and all active optical elements. The Beam Analyzer Camera provides “Real-Time” viewing of spatial distribution, measurement, analysis and monitoring of laser power, beam diameter, beam ovality, beam center and beam centroid. When used in a beam delivery system, the BA-CAM can sample the unfocused laser beam (via beam splitter or 99.5% reflective mirror) prior to a focus lens. The BA-CAM can monitor the laser beam for degradation, stability, power, alignment and tuning. A beam reduction optic is required for laser beams larger than 5 mm in diameter. Haas Laser Technologies offers a wide array of attenuation options and pick off optics for monitoring a laser beam profile in a real time environment.

VIDEO
