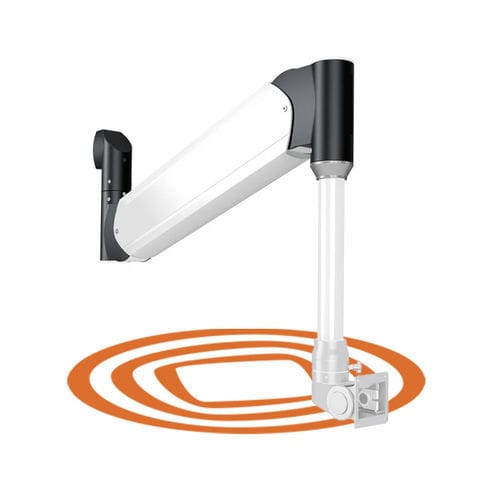

Control box support arm system HMA I series

• Continuously adjustable stroke limiter • Variable swivel range up to 300° • Max. cable passage: 25 x 19 mm • Designed to connect to HMA I- components and tubes Continuously adjustable suspension arm with internal cable duct with DVI connector. Vertical swing angle +/-40° with continuously adjustable stroke limiter to +/-0°. Fine adjustment of the load carrying capacity range by means of an adjusting screw. Restraint-guided load suspension at the head joint. Option: Automatic locking of the vertical movement in each position over the entire stroke. Notice • Delivery time, price upon request • Configurations and ordering examples, see downloads
