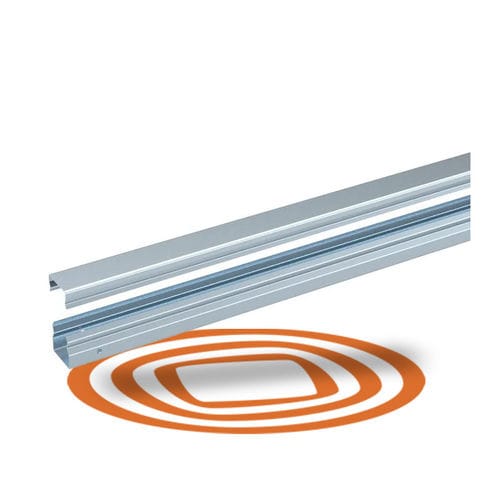

Cabling trunking 120 series

sheet steelrigid

The snap-on duct covers require minimum space to open. If necessary, they can be secured with screws after installation. The chamfered duct ends permit a continuous insertion. The duct ends have pre-drilled holes for the connection screws of u-brackets or connection brackets. Technical data • Article number:1204-0003-10-00 • type:Cable duct system type 1204 • Length:1000 mm • Protection class:IP2X • Material:Sheet steel • Surface:electrolytically-galvanised • Sheet thickness:1,5 mm/0,0,6" • Weight:1.1 kg Notice • Intermediate lengths can be made by simply cutting the cable ducts using a jigsaw or band-saw and then punching the connection holes with a universal punch 1204-1301-06-00. • The various connection options are shown in the catalog. See “Cable Duct Catalog" in the Download Center.Equipotential bonding must be provided by the customer. See “Protective conductor structure - xxx” in the Download Center.
