Crimp cable lug 2241070082

tubularinsulated

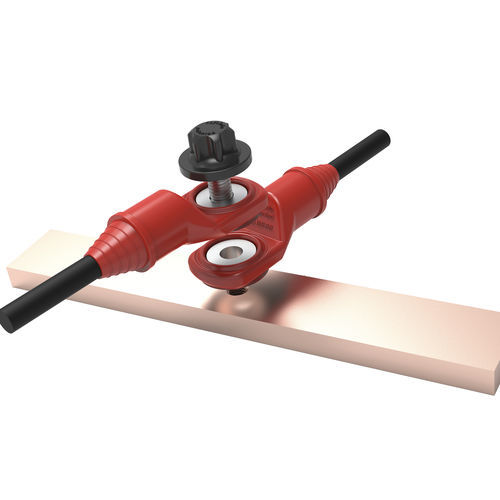

Product information Lugsulation® Smart 70 mm² – Efficient and Secure Contact Insulation for Flat Terminals The Lugsulation® Smart 70 mm² is an innovative solution for the safe insulation of electrical connections, particularly in lithium-ion batteries and applications with flat contact surfaces. This variant of the Lugsulation® technology enables serial and parallel installation on flat terminals without additional components. Benefits & Features: ✔ Complete Insulation: Protects against accidental contact and short circuits in electrical connections ✔ Easy Installation: Direct mounting on flat terminals (0–2 mm height) without extra insulation materials ✔ Stackable Design: Allows multiple connections per terminal ✔ High Protection Class: Standard IP64, expandable to IP67 with heat shrink tubing ✔ High-Quality Materials: TPE or TPE V0 (UL94) for enhanced electrical insulation and durability ✔ Special Torx Insulation Screw: Zinc-plated steel with molded plastic for maximum safety ✔ Flexible Sizes and Colors: Available in different versions to match various applications Technical Specifications: Cable cross-section: 70 mm² Screw size: M8 Length options: 15 mm, 22 mm, or 28 mm Color: Available in various colors for clear identification Only available in set. For fine stranded/superflex conductors please select the next larger cross-section. The Lugsulation® Smart 70 mm² provides an efficient, safe, and cost-effective solution for cable connections and insulation, particularly in battery, automotive, and industrial applications. Request now and benefit from maximum safety!
