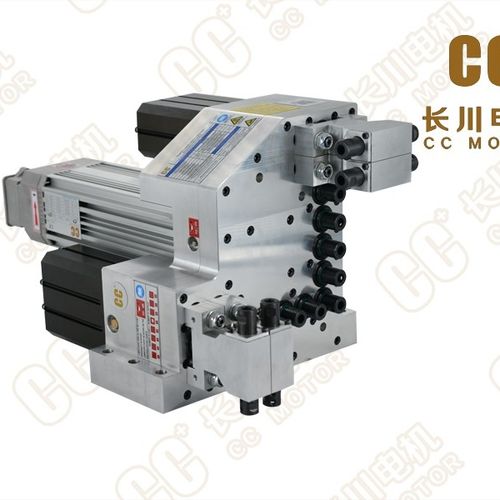

Electric drilling unit CWD-V9H4

electric drilling unit
electric drilling unit
electric drilling unit
Add to favorites
Compare this product


Characteristics

Drive type
electric
Rotational speed

3,300 rpm, 4,200 rpm
(20,734.5 rad.min-1, 26,389.4 rad.min-1)

Stroke

60 mm
(2.36 in)

Description

CWD-V9H4 Drilling model:CWD-V9H4 Shaft extension stroke::60mm Vertical shaft Speed:4200 rpm Max Horizontal speed:3300 rpm Max Motor power: 1.7kw Voltage: 380V Voltage: 24V Model: 3V200 Two three normally closed Working medium: compressed air Air pressure: 0.6-0.8MPa Pipe connector of solenoid valve: Φ4 It used in woodworking industry processing, including drilling of whole sets of furniture, wardrobe, cabinets, doors, windows and office furniture. Speedy Processing, high precision, low noise; The display of drilling adopt imported digital display, which make location accurate and convenient.
