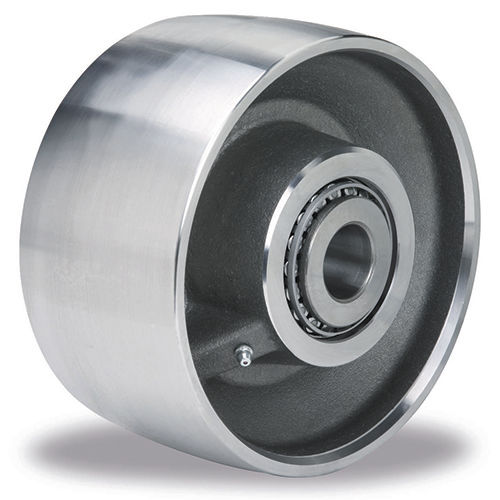

Monobloc wheel FS seriessteelfor heavy loadsflanged

monobloc wheel
monobloc wheel
monobloc wheel
Add to favorites
Compare this product
indicative price

Characteristics

Type
monobloc
Material
steel
Applications
for heavy loads
Other characteristics
flanged, grooved
Diameter

Max.: 12 in

Min.: 4 in

Load capacity

Max.: 23,000 lb (10,433 kg)

Min.: 1,400 lb (635 kg)

Description

Forged Steel Wheels Capacity Range: 1,400 – 23,000 lbs. Forging technology produces the ultimate tensile strength in industrial wheels. Coupled with solid billet design, this makes Hamilton Forged Steel Wheels virtually indestructible. Consequently, load limits are governed by bearing capacity. Wheel treads are machined smooth and concentric, with a slight crown that lessens energy requirements by aiding turnability under heavy loads. All sizes (except 4" dia.) are available with precision tapered roller bearings in order to realize maximum benefits from the capacity potentials. All the wheels listed below come with a new clearcoat enamel finish. And wheels (except 4" dia.) have ball-check lubrication fittings installed in the hubs.
