Hydraulic winch HMW 22.0 PHT - EN
wire ropefor heavy loadspulling

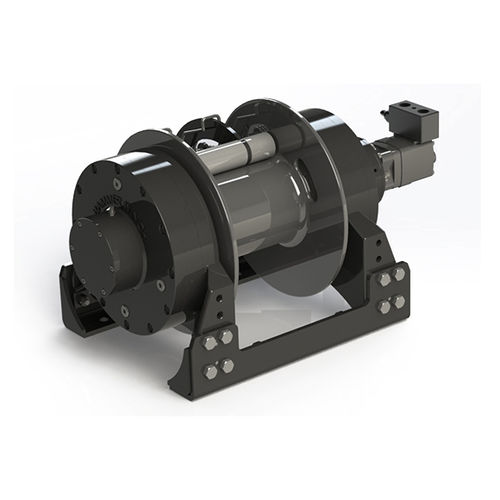

Hydraulic winch - HMW 22.0 PHT - EN - Hammer Winch - wire rope / for heavy loads / pulling
Hydraulic winch - HMW 22.0 PHT - EN - Hammer Winch - wire rope / for heavy loads / pulling
Hydraulic winch - HMW 22.0 PHT - EN - Hammer Winch - wire rope / for heavy loads / pulling - image - 2
Hydraulic winch - HMW 22.0 PHT - EN - Hammer Winch - wire rope / for heavy loads / pulling - image - 3
Add to favorites
Compare this product

Characteristics

Operation
hydraulic
Type
wire rope
Application
for heavy loads, pulling
Other characteristics
compact, planetary gear, with brake
Capacity

22,000 kg
(48,501.7 lb)

Min.: 11,772 kg
(25,952.82 lb)

Max.: 22,000 kg
(48,501.7 lb)

Speed

Min.: 4,300 mm/min
(2.8 in/s)

Max.: 8,000 mm/min
(5.2 in/s)

Cable length

Min.: 9.4 m
(30'10" )

Max.: 77.4 m
(253'11" )

Pressure

170 bar
(2,465.64 psi)

Flow

75 l/min
(19.81 us gal/min)

Weight

345 kg
(760.595 lb)

Description

• Extra reinforced steel cast body through the heat treatment and industrial design • Light and robust design. • 100% Holding Negative-Acting Hydraulic brake system. • Standard pneumatic rope unloading system. • Easy assembly, compact design and high torque hydromotor. • Two-stage planetary gear system. • EN 14492-1 : 2006 Power Driven winches supported • CE Machinery Directive 2006/42/EC
