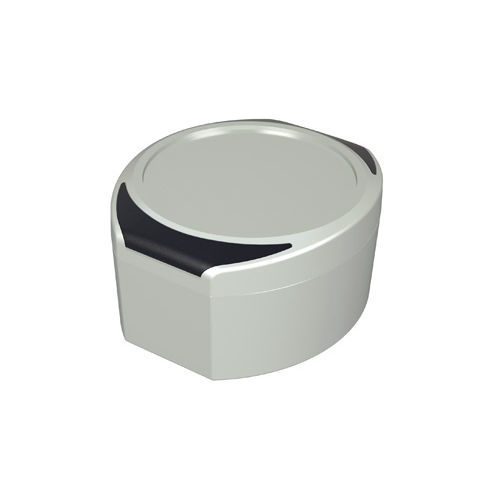

Wall-mount enclosure R285 Seriescylindricalpolyoxymethylenesilicone
Add to favorites
Compare this product
Characteristics
- Construction
- wall-mount
- Configuration
- cylindrical
- Material
- polyoxymethylene, silicone, stainless steel
- Application
- outdoor
- Protection level
- watertight, UL, standard, UV-resistant, IP66
- Other characteristics
- design, clip-on, protection
- Width
97 mm, 119 mm, 139 mm, 179 mm
(3.8 in, 4.7 in, 5.5 in, 7 in)- Height
110 mm, 130 mm, 150 mm, 190 mm
(4.3 in, 5.1 in, 5.9 in, 7.5 in)- Depth
55 mm, 65 mm, 80 mm, 90 mm
(2.17 in, 2.56 in, 3.15 in, 3.54 in)
Description
Premium plastic, UV-resistant, Luran enclosures for outdoor applications
Shallow lid, deep body
Captive, stainless steel - lid screws
Enclosure can be mounted to wall or shelf after closing the lid
Integrated 1.7 mm recess in lid for membrane keypads and front panels
Silicone gasket standard (-50ºC up to +140ºC)
Degree of protection: IP 66
Enclosure is a light grey, RAL 7035 Luran - UL 94 HB flammability rating
Clip-on design covers, plastic polyoxymethylene (POM), anthracite grey, RAL 7016
Catalogs
R285 Series
2 Pages
