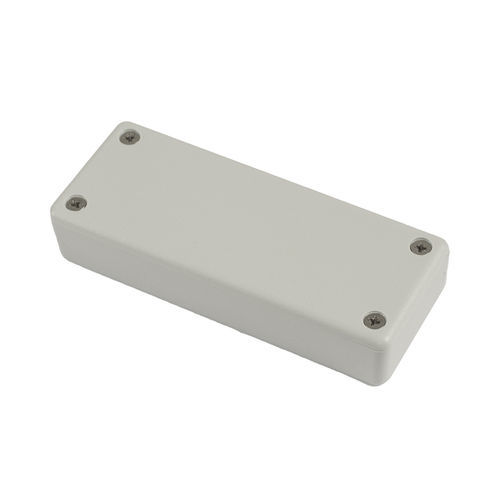

Portable enclosure 1551 series
smallrectangularkeyring

portable enclosure
portable enclosure
portable enclosure
portable enclosure
portable enclosure
Add to favorites
Compare this product


Characteristics

Construction
small, portable
Configuration
rectangular, keyring
Material
plastic, nickel, satin
Protection level
secure, IP54
Other characteristics
with lid, protection
Width

1.4 cm, 1.6 cm, 2 cm, 2.4 cm, 3.2 cm
(0.6 in, 0.6 in, 0.8 in, 0.9 in, 1.3 in)

Description

Ideally suited for mounting small printed circuit boards or used as potting boxes. Molded in a choice of black, gray, or translucent blue general purpose ABS plastic. Satin texture finish. Complete with lid and two self tapping screws. This series is also available with flanged lids. Screws are color matched to enclosure (nickel plated screws with grey enclosures and black plated with black enclosures). 2 P.C. board standoffs molded into interior. Lap joint construction provides protection against access of dust and splashing water. Designed to meet IP54. Some sizes are available with a keyring kit. Models with key ring kit are predrilled in the narrow side. For even smaller enclosures, try our 1551MINI series. Lid is apx. 0.12" (3 mm) deep. Extra self tapping lid screws are #4 x 1/2" (Qty 100 - Part number 1591TS100 - nickel plated and 1591TS100BK - black) To secure P.C. board use self tapping #2 x 3/16" screws (Qty 100 - Part number 1551ATS100) - not included with enclosure.
