CO2 laser marking machine CO2-D200plasticpaperwood
Add to favorites
Compare this product
Characteristics
- Technique
- CO2 laser
- Material
- plastic, paper, wood, glass, leather, rubber, for silicon
- Applications
- for non-metals
- Other characteristics
- automatic, cutting
- Power
200 W
(0.27 hp)- Speed
7,000 mm/s
Description
Overview

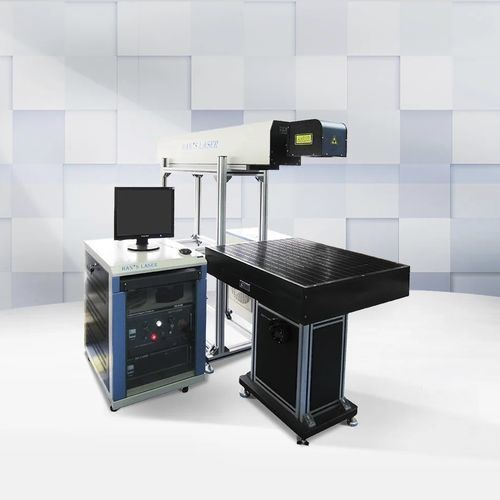

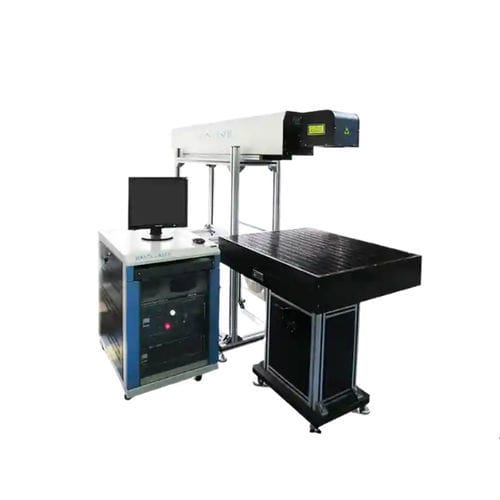

CO2-D200 is a CO2 RF laser marking and cutting machine designed for high-power processing of non-metallic materials. The integrated machine architecture combines the laser head and worktable to improve stability. The system includes water cooling, front-focus lens, CXY30 galvanometer and industrial IPC with a 17-inch LED monitor.
Applications
Technical data
Features
Full technical specifications
CO2-D200 is a CO2 RF laser marking and cutting machine designed for high-power processing of non-metallic materials. The integrated machine architecture combines the laser head and worktable to improve stability. The system includes water cooling, front-focus lens, CXY30 galvanometer and industrial IPC with a 17-inch LED monitor.
Applications
- Crafts and gifts, acrylic (PMMA) and crystal glass
- Leather, textiles and thick leather cutting
- Wood, paper and packaging (including food packaging)
- PCB, FPC and electronic components (SMD)
- Ceramics, semiconductor substrates, plastic connectors, silicone rubber parts and other non-metallic materials; also suitable for cutting operations
Technical data
- Model: CO2-D200
- Laser: CO2 metal RF laser — Wavelength: 10.64 μm
- Max output power: 200W — Repetition frequency: ≤25 kHz
- Marking area: 500mm×500mm — Marking speed: ≤7000 mm/s
- Minimum line width: 0.15 mm — Minimum character size: 0.8 mm
- Cooling mode: Water cooling — Repetition accuracy: ±0.01 mm
- Overall size: 2115mm×730mm×1400mm — Supply: 220V / Single phase / 50Hz / 20A
Features
- High single-pulse peak power with low thermal impact to minimize edge burning
- Large processing area and high cutting efficiency, suitable for thick leather and demanding non-metal materials
- Integrated mechanical design for improved stability and reliability
- High-speed galvanometer scanning and precise positioning for detailed marking
- Industrial IPC, EMCC marking control card and HLM_V1.0 software for automated production integration
Full technical specifications
- Machine Model: CO2-D200
- Laser: CO2 metal RF laser
- Laser Wavelength: 10.64 μm
- Max Output Power: 200W
- Repetition Frequency: ≤25 kHz
- Marking Area: 500mm×500mm
- Marking Speed: ≤7000 mm/s
- Minimum Line Width: 0.15 mm
- Minimum Character Size: 0.8 mm
- Cooling Mode: Water cooling
- Repetition Accuracy: ±0.01 mm
- Overall Size: 2115mm×730mm×1400mm
- Supply Voltage, Power Demand: 220V / Single phase / 50Hz / 20A
- Lens: Front focus
- IPC: Great Wall
- Monitor: 17-inch LED monitor
- Galvanometer System: CXY30
- Software: HLM_V1.0
- Marking Control Card: EMCC marking control card
