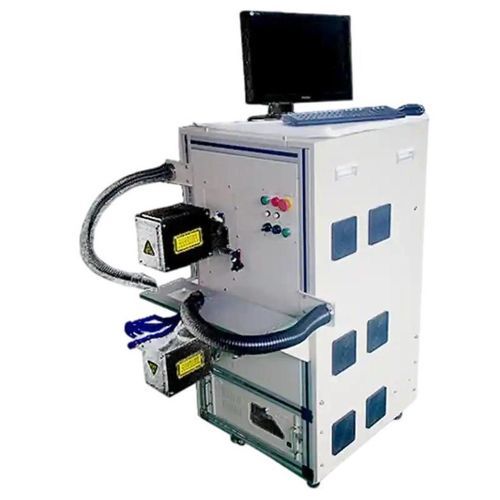

Enameled wire stripping machine CO2-TD55-2A

for electrical cablesfor electrical wirelaser

Machine Features

• Non-contact CO2 laser stripping with dual heads operating simultaneously on top and bottom to deliver symmetric, high-throughput processing.
• Eliminates mechanical contact with conductors, reducing the risk of inner conductor breakage.
• Clean, residue-free removal of non-metallic insulation without damage to metal conductors.
• Precisely adjustable upper-lower alignment to avoid wire offset and ensure repeatable stripping positions.
• Compact design for simple installation and straightforward maintenance.

Applications
Suitable for stripping a wide range of insulated wires and fine cables (diameter <5 mm), including PVC, PTFE, silicone and enamel-coated conductors. Typical applications include wire harness production, electronic assembly and precision cable processing where non-contact, reproducible stripping is required.

Laser Cutting Effects
Product images illustrate clean, high-precision stripping results achieved by the dual-head CO2 laser configuration. The system enables selective removal of non-metallic insulation using light energy without physical contact with metal conductors.

Technical specifications

• Model: CO2-TD55-2A
• Processing method: CO2 laser non-contact stripping
• Dual-head design: two laser heads operate simultaneously (top and bottom)
• Applicable wire diameter: <5 mm
• Stripping quality: clean, residue-free, no damage to conductor
• Alignment control: adjustable upper-lower alignment to avoid wire offset
• Performance: fast stripping speed, high precision, accurate process control
• Material handling: selective stripping of non-metallic insulation without contacting metal conductors
• Reliability: prevents inner conductor breakage by eliminating mechanical contact
• Maintenance: designed for simple installation and maintenance
