Hydraulic press brake HBS series

CNCeco-friendlylarge

Overview
The HBS Series hydraulic press brake offers a range of CNC-controlled bending machines designed for precision, repeatability and energy-efficient operation. New hydraulic and control subsystems combined with an oil-resistant stainless steel split oil tank reduce consumption and improve system reliability.

Key Features

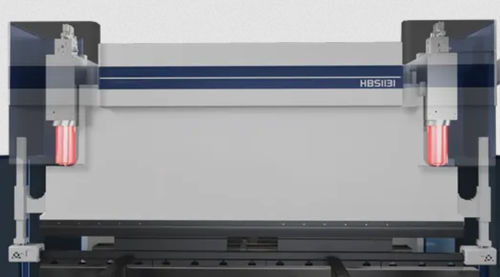

• Hydraulic Cylinder — Main oil cylinders on both sides use electro-hydraulic servo valves and grating scales to form closed-loop control, providing accurate feedback for precise ram movement and high repeat positioning accuracy.
• Two-way Mechanical Crowning System — CNC automatically calculates and applies compensation; the closed-loop control of the compensation ensures high precision. The mechanical crowning is adjustable in two directions for transverse and longitudinal compensation.
• Back Gauge Systems — Full-function back gauge mechanism with selectable multi-axis back gauges. Key components (guide rails, ball screws, bearings) use high-quality parts to ensure positional accuracy.
• High-accuracy Grating Ruler — High-precision grating rulers mounted in C-shaped plates on both frame sides minimize the influence of frame deformation on bending accuracy and provide real-time position feedback to the CNC.
• Large Slider Stroke — Slider stroke up to 235 mm, closing height up to 585 mm and throat depth up to 410 mm (model-dependent) to expand processing scope and die options.
• Movable Bracket — Adjustable upper workbench bracket with height and rotation adjustment and step-position settings to support ergonomic and efficient handling during bending operations.
• Automatic Bending Cell — Integration with robotic systems for automatic gripping, centering, bending and palletizing to enable continuous 24-hour batch production and reduce manual labor. Custom automated cell solutions available.

Sample Images / Examples
Multiple example images and sample parts illustrate typical bending results and machine applications.

Technical Data Sample (for reference only — all data subject to actual technical documents)
Columns: Press force (kN) | Bending length (mm) | Width between columns (mm) | Throat Depth (mm) | Slide Stroke (mm) | Bed height (mm) | Rapid Speed (mm/min) | Work Speed (mm/min) | Return traverse speed (mm/min) | Main Motor Power (kW) | Oil Tank Capacity (L) | Dimensions (L x W x H) mm | Machine Weight (kg)
HBS0615: 600 | 1500 | 1200 | 215 | 350 | 575 | 200 | 20 | 200 | 6 | 80 | 2350 x 1400 x 2330 | 4000
HBS0620: 600 | 2050 | 1700 | 215 | 350 | 575 | 200 | 20 | 200 | 6 | 120 | 2950 x 1400 x 2330 | 4900
HBS0625: 600 | 2550 | 2100 | 215 | 350 | 575 | 200 | 20 | 200 | 6 | 120 | 3450 x 1400 x 2330 | 5950
HBS1131: 1100 | 3100 | 2700 | 235 | 410 | 585 | 220 | 17 | 200 | 10.8 | 200 | 3950 x 1800 x 2650 | 8350
HBS1141: 1100 | 4100 | 3700 | 235 | 410 | 585 | 220 | 17 | 200 | 10.8 | 200 | 4950 x 1800 x 2650 | 9200
HBS1631: 1600 | 3100 | 2700 | 235 | 410 | 585 | 180 | 14 | 180 | 13.2 | 200 | 3970 x 1850 x 2650 | 10500

Technical specifications

• Series name: HBS Series
• Press force range (examples): 600 kN, 1100 kN, 1600 kN (model-dependent)
• Bending length options: 1500 mm to 4100 mm (model-dependent)
• Throat depth examples: 215 mm or 235 mm
• Slider stroke: up to 235 mm (varies by model)
• Closing height examples: 575 mm or 585 mm
• Main motor power examples: 6 kW to 13.2 kW depending on model
• Oil tank capacity examples: 80 L to 200 L depending on model
• Machine dimensions and weights vary by model — see technical table above for per-model figures
