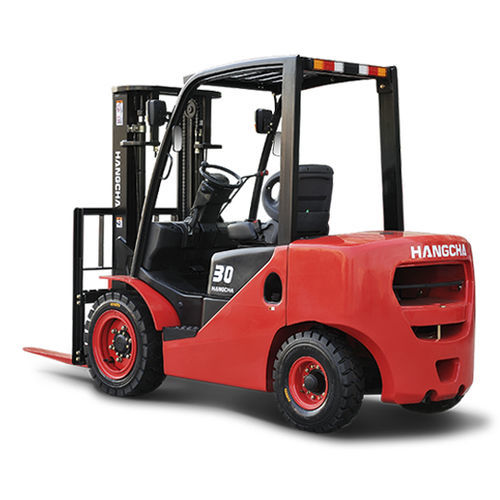

Diesel forklift XF seriesgasride-on4-wheel
Add to favorites
Compare this product
Characteristics
- Motor type
- diesel, gas
- Operator
- ride-on
- Other characteristics
- 4-wheel
- Carrying capacity
Max.: 3,500 kg
(7,716.2 lb)Min.: 3,000 kg
(6,613.9 lb)- Lifting height
Max.: 7,000 mm
(275.59 in)Min.: 3,000 mm
(118.11 in)- Overall width
1,225 mm
(48.2 in)- Load center distance
500 mm
(19.7 in)- Weight without load
4,350 kg, 4,705 kg
(9,590.1 lb, 10,372.7 lb)- Ground clearance under mast with load
130 mm
(5.1 in)- Ground clearance at center of wheelbase with load
165 mm
(6.5 in)- Turning circle radius
2,355 mm, 2,415 mm
(92.7 in, 95.1 in)- Travel speed
18.5 km/h, 19.8 km/h
(11.5 mph, 12.3 mph)- Lifting speed
0.4 m/s, 0.5 m/s
(1.312 ft/s, 1.64 ft/s)- Lowering speed
0.5 m/s
(1.64 ft/s)- Rated drawbar pull
20,500 N, 22,000 N
- Gradeability
20 %, 23 %, 25 %
- Rated output
37.4 kW, 43.4 kW, 44.8 kW
(50.8 hp, 59 hp, 60.9 hp)- Rated speed
2,400 rpm, 2,700 rpm
(15,079.6 rad.min-1, 16,964.6 rad.min-1)- Cubic capacity
2,230 cm³, 2,488 cm³, 2,615 cm³
(75.4 US fl oz, 84.1 US fl oz, 88.4 US fl oz)- Maximum operating pressure
175 bar
(2,538.2 psi)
