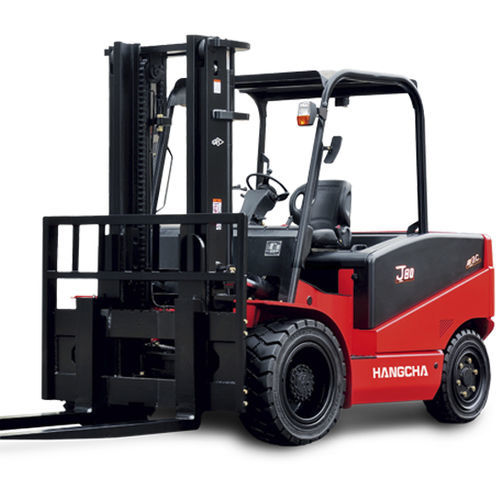

Electric forklift CPD-J-L seriesride-on4-wheel
Add to favorites
Compare this product
Characteristics
- Motor type
- electric
- Operator
- ride-on
- Other characteristics
- 4-wheel
- Carrying capacity
8,000 kg, 9,000 kg, 10,000 kg
(17,637 lb, 19,841.6 lb, 22,046.2 lb)- Lifting height
3 m
(9'10" )- Overall width
1,970 mm, 2,040 mm
(77.6 in, 80.3 in)- Load center distance
600 mm, 900 mm
(23.6 in, 35.4 in)- Height to top of overhead guard
2,550 mm
(100.4 in)- Seat height
1,410 mm
(55.5 in)- Length to fork face
3,755 mm
(147.8 in)- Ground clearance at center of wheelbase with load
190 mm
(7.5 in)- Turning circle radius
3,560 mm
(140.2 in)- Travel speed
13 km/h, 15 km/h
(8.1 mph, 9.3 mph)- Lifting speed
Max.: 0.4 m/s
(1.312 ft/s)Min.: 0.3 m/s
(0.984 ft/s)- Lowering speed
Max.: 0.5 m/s
(1.64 ft/s)Min.: 0.4 m/s
(1.312 ft/s)- Gradeability
Max.: 15 %
Min.: 12 %
- Rated output
35 kW, 52 kW
(47.6 hp, 70.7 hp)- Maximum operating pressure
18.5 MPa, 19 MPa
