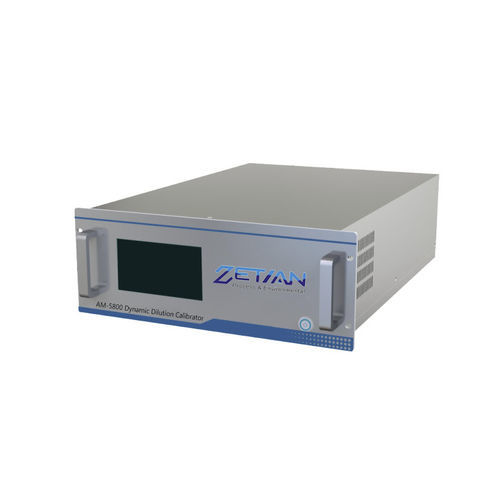

Multifunction calibrator AM-5800

gas flowfor gas analyzersfor air analyzers

Dynamic Calibrator is a multi-channel gas calibration instrument based on Microprocessor Technology and specifically developed for precise gas analyzer. By adopting high precision mass flow controller and standard gas, the calibrator provides calibration standard gas for zero point and span test of multiple gas parameters, as well as four gas sources at the same time. Dynamic calibrator can be equipped with built-in programmable ozone generator, which can be used not only for accurate and reliable ozone calibration, but also for GPT to generate NO2. The ozone generator adopts multi-point piecewise linear drive to ensure the repeatability and accuracy of ozone concentration; the optional photometer also enables higher precision control of the ozone generator. Dynamic calibrator has fast response, high repeatability, high precision and is easy to use. It can also be customized according to customer requirements. Features Continuous self-check with alarm function High precision Swiss mass flow controller, high dilution ratio, fast response Quartz gas phase titration gas chamber, multiple calibration gas interfaces Optional ozone emitter and ozone photometer Color screen display with touch operation, large capacity memory, store historical data automatically Applications Use along with zero gas generator to provide quality assurance for laboratory and gas analyzer. Specifications Flow range of diluent gas:：0~10SLPM Flow range of calibration gas: 0~100SCCM Accuracy of flow control: ±1%F.S. Linearity flow control: ±0.2%F.S. Repeatability of flow control: ±0.2%F.S. Flow demand of diluent gas: 10SLPM@30psi Response time:<180s (T98) Ambient temperature: 5℃~40℃
