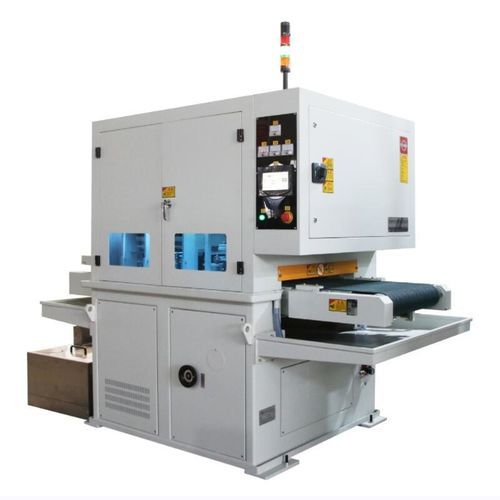

Metal brushing machine SG630-3WB

beltroller

Product overview
SG630-3WB wet roller brush series is designed for flat parts and material processing. Particularly suitable for heat-sensitive and cold-state materials such as stainless steel and aluminum-magnesium alloys. Equipped with a precision grinding fluid circulation system to prevent deformation during grinding and ensure clear, consistent surface grain.

Machine functions
Used for wet roller brush grinding of flat parts and materials. Maintains part flatness without deformation and produces clear, uniform surface grain. Equipped with a precision grinding fluid circulation system to accommodate heat-sensitive and cold-state materials.

Machine features

• Wet processing for effective surface finishing.
• Presettable machine opening for continuous, high-efficiency inline batch processing.
• 祥生 patented external four-column synchronous lifting worktable.
• Three roller brush units configurable for independent or combined operation.
• Stainless-steel grinding fluid filtration system to extend fluid life and ensure processing quality.
• Conveyor belt made of oil- and acid/alkali-resistant material for diverse operating conditions.

Core components

• High-speed rotating parts fitted with imported bearings to improve reliability and service life.

Consumables
Includes abrasive nylon filament roller brushes and non-woven roller brushes.

Suitable materials
Stainless steel, aluminum, copper, magnesium alloys, non-metallic materials, etc.

Specifications
Processing width: 600 mm
Recommended thickness: 0.8-50 mm
Feed speed: 2-9 m/min
Roller brush diameter: 630 mm

Illustrations
Page includes schematic images of machine functions and features (machine structure, worktable, grinding filtration system, etc.).

Technical features / specifications

• Model: SG630-3WB
• Processing width: 600 mm
• Recommended thickness: 0.8 - 50 mm
• Feed speed: 2 - 9 m/min
• Roller brush diameter: 630 mm
• Processing mode: Wet roller brush grinding (suitable for heat-sensitive and cold-state materials)
• Grinding fluid system: Precision circulation with stainless steel filtration
• Worktable: External four-column synchronous lifting system (patented)
• Roller brush configuration: Three groups, independent or combined use
• Conveyor: Oil- and acid/alkali-resistant belt
• Core components: High-speed rotating parts with imported bearings
• Consumables: Abrasive nylon filament roller brushes, non-woven roller brushes
