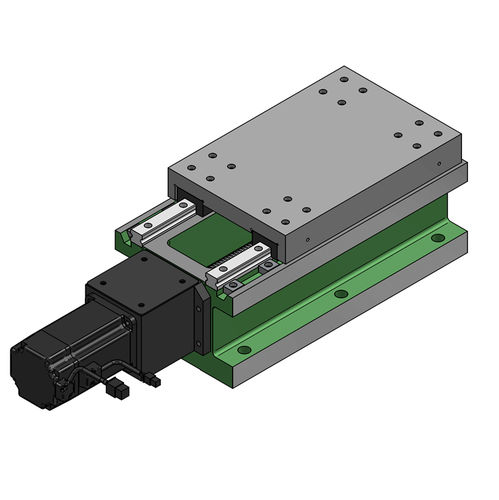

Slide unit RH150

RH150 slide unit is designed with linear rails and precision class ball screw which are incorporated a servo motor. RH150 linear guide slide is guided by rolling element blocks, either ball or cylindrical rollers. These rollers allow the slide to operate with zero friction, move rapidly and creating less heat. The advantages of linear motion slide are smooth, fast and extremely accurate positioning performance due to low friction. Max. Stroke : 90mm Saddle : 150 x 300mm Standard Ball Screw Grade : C7 - Ø20x5 [mm] Precision Ball Screw Grade : C5 or C3 (Optional) Linear Block : Ball Type or Cylindrical Roller Linear Width : 20mm Servo motor stand / coupling / telescopic included Optional DELTA servo motor Parallelism : within 0.01mm/100mm
