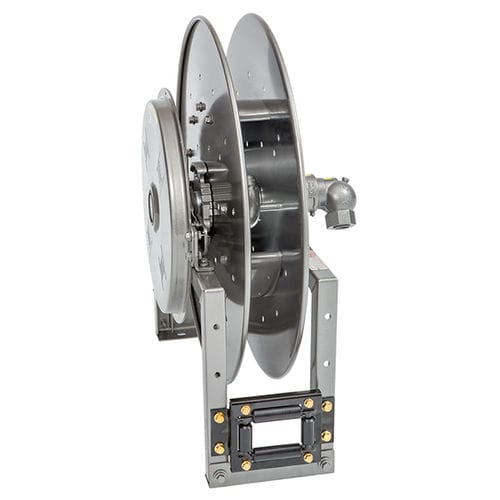

LPG reel SPB800 Series
hosespring rewindfixed

LPG reel
LPG reel
Add to favorites
Compare this product


Characteristics

Type
hose
Drive mechanism
spring rewind
Configuration
fixed, wall-mounted, trolley-mounted, truck-mounted
Applications
heavy-duty, for LPG
Reel material
stainless steel, steel, aluminum
Other characteristics
corrosion-resistant, custom
Hose/cable length

Min.: 12.2 m
(40'00" )

Max.: 33.5 m
(109'10" )

Description

Spring Rewind Reels To handle 3/4" or 1" I.D. hose LP Gas / Propane / Refueling - Standard hose reel is steel construction, painted graphite. Stainless steel construction is available. - Aluminum construction is also available. "SB" prefix denotes polished aluminum construction, offering both reduced weight and superior corrosion resistance compared to standard steel construction. - Rollformed frame for heavy-duty applications must be specified.Non-sparking ratchet locks reel. - Declutching arbor to prevent damage from reverse winding. - Standard inlet: 90° ball bearing swivel joint with 1" female NPT threads. - Standard outlet: 1" female NPT threads. - Other sizes and/or threads can be furnished and must be specified. - Pressures to 350 psi (24 bar). - Temperatures from -40° F to +350° F (-40° C to +177° C). - Consult factory for other pressures and temperatures. - Supplied 4-way roller assembly. Specify roller position.
