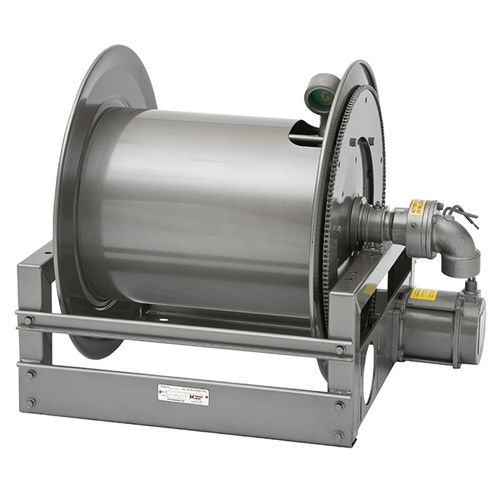

Hose reel 8000 Seriesmanualmotorizedfor water
Add to favorites
Compare this product
Characteristics
- Type
- hose
- Drive mechanism
- manual, motorized
- Applications
- for water, for air, heavy-duty, for fuel, for chemicals, for food industry applications, for marine applications
- Configuration
- fixed
- Other characteristics
- rugged
- Hose/cable length
Max.: 103 m
(337'11" )Min.: 18 m
(59'00" )
Description
Manual or Power Rewind Reels
To handle single 1-1/2" or 2" I.D. hose
Bulk Transfer / Fueling Applications / Chemical Transfer / General Dispensing / Suction / Discharge
- Heavy-duty reel designed for longer lengths and larger diameters of hose through 2" I.D.
- Choose gear-driven crank rewind or chain and sprocket drive powered by an electric, hydraulic, or compressed air motor.
- Crank rewind reels supplied with a pinion brake; power rewind reels with a comet brake.
- Standard inlet: 90° ball bearing swivel joint, 2" female NPT threads.
- Standard outlet: flanged riser, 2" female NPT threads.
- Standard: inlet, outlet riser, and hub assembly are steel. Options: swivel joint also available in aluminum or stainless steel, riser and hub assembly also available in stainless steel.
- Rollers and roller mounting brackets are accessory items. Specify roller position.
- Pressures to 600 psi (41 bar).
- Temperatures from -60° F to +175° F (-51° C to +79° C).
- Consult factory for other pressures and temperatures.
