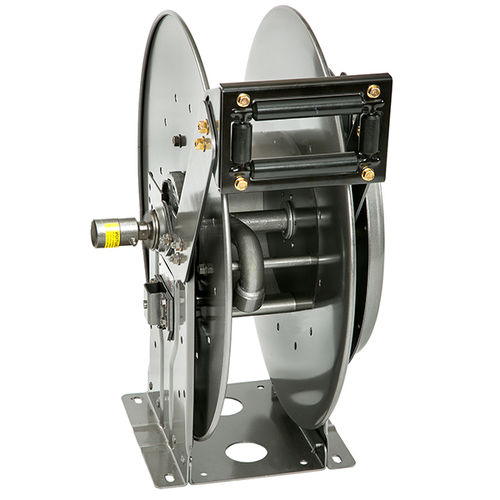

Spring rewind reel DEF Series

hosefixedwall-mounted

Spring Rewind Reels To handle 1/2", 3/4", or 1" I.D. hose for DEF (Diesel Exhaust Fluid) - Narrow frame and compact mounting base. - Non-sparking ratchet assembly. - Declutching arbor to prevent damage from reverse winding. - Standard inlet: 90° 304 stainless steel full-flow swivel with EPDM seals and - available in 1/2", 3/4" or 1" female NPT threads. - Standard fluid path & outlet: 304 SST fluid path. - Standard outlets: 1/2", 3/4" or 1" female NPT threads. - Pressures to 2000 psi (138 bar). - Temperatures from -40° F to +212° F (-40° C to +100° C). - 4-way roller assembly. - SR and VR roller positions: swivel joint is standard on the right, TR roller positions: swivel joint is standard on the left. - Constant tension is available consult factory.
