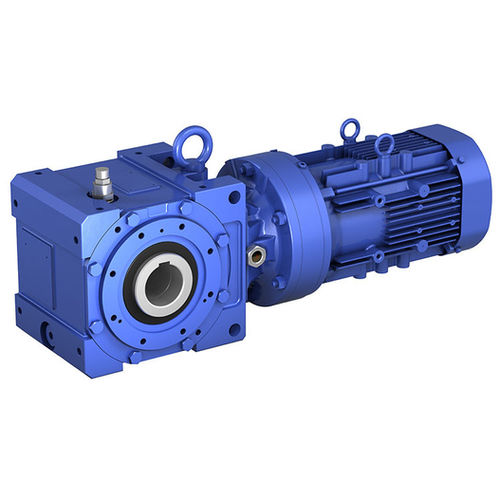

DC gearmotor Cyclo® BBB4
bevelright anglehollow-shaft

DC gearmotor
DC gearmotor
DC gearmotor
DC gearmotor
DC gearmotor
DC gearmotor
DC gearmotor
Add to favorites
Compare this product


Characteristics

Motor type
DC
Type
bevel
Shaft orientation
right angle
Shaft configuration
hollow-shaft
Power
100 W...500 W, 500 W...1000 W, 10 W...50 W, 1 kW...2 kW, 2 kW...5 kW, 50 W...100 W, 5 kW...10 kW, 20 kW...50 kW, 0 W...10 W
Torque
> 10 kNm
Product applications
bevel gear
Other characteristics
efficiency, custom, cast iron
Gear ratio

Max.: 26,000 unit

Min.: 11 unit

Description

Right Angle Spiral Bevel Gearmotors with Cyclo Drive Input Stage BBB4 - rugged and durable gearmotors. Ductile iron housing for robust applications Low maintenance and easy to operate Highest reliability and durable design High efficiency, with all components made of high quality steel, hardened and ground Bevel Buddybox BBB4 The BBB4 gearmotor combines the strength and flexibility of the Cyclo Drive gear reducer and a single stage right angle spiral bevel gear stage in a rugged right-angle gearbox design. Its unique design combines performance with outstanding quality and reliabilty. Is is an excellent choice for applications in many industries including material handling & logistics, steel, chemical, waste water treatment, mining industries and operates savely in harsh and generally unattended ambient. Features Taper Grip Bushing System The keyless Taper-Grip bushing system provides simple and reliable installation without the need for a custom shaft. Ductile Iron Housing New ductile iron housing is twice as strong as cast iron, making it one of the most rugged bevel gearboxes available Increased Overhung Load Capacity BBB4 with up to 375% external load capacity compared to the previous models New Larger Size New F Size extends torque ratings up to 18.000 Nm and can accommodate larger shaft diameters Unified Lubrication System Single oil-bath lubrication system for easy maintenance and higher performance. Optional Taconite Seal System Heavy-duty, fortified, grease purgeable system withstands the most demanding applications.

Catalogs

No catalogs are available for this product.

See all of Hansen Industrial Transmissions‘s catalogs
