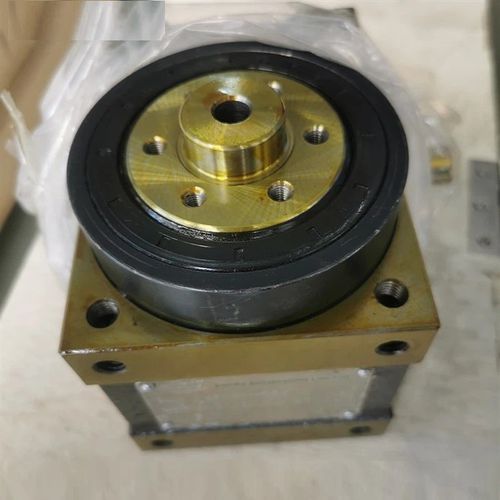

Rotary indexing table with stepper motor 45DF

horizontalcamcompact

Hansheng 45DF Rotary Cam Indexing Table with a short shaft and small flange output form, flange and disc mounting and positioning, small flange screw locking, this type of machine is suitable for medium and high speed turntable system, intermittent or swing positioning machinery, ordinary gear motors can meet the use of needs. 45DF Rotary Cam Indexing Table can 360 degree drive angle continuous rotation, can use stepper or servo drive, motors and sensing systems can be supporting the integrated shipment, precision ± 30arc-sec, 1 meter turntable precision can be enlarged up to 5 to 7 filaments, high-speed up to 600 revolutions per second. 45DF type of indexer has a wide range of applications, both the use of disc type and assembly line type applications, this type of due to take up less space, high precision and efficiency, the output shaft end can be installed directly on the disc, the installation and the overall design is more compact, in the actual operation of the process, for the repetition of the positioning accuracy of the impact of the smaller for the choice of a larger angle of the drive, it can even more Increase its stability. Features of 45DF Rotary Cam Indexer consist in: 1. High precision positioning: fit for machining and precision assembly 2. Positioning accuracy up to ±0.02° High torque allows one to handle heavy loads 3. Its rated range is roughly 500 Nm. Provide 4, 6, 8, 12 and other station possibilities as well as flexible response to various applications 4. Excellent stability: little noise and smooth running fit for either high speed or heavy load situations.
