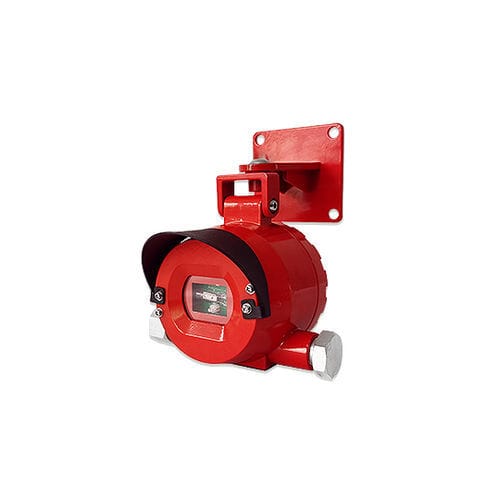

UV flame detector FD10-UV

4-20 mAexplosion-proofIP66

Response spectrum range: 185~260nm The longest detection distance can reach 30 meters Multi-level sensitivity settings to meet the needs of different occasions FD10-UV ultraviolet flame detector is a new type of intelligent fire detection equipment. The detector adopts advanced ultraviolet detection technology. By using solar-blind band of ultraviolet, the detector can be used to suppress the interference of sunlight, thus achieving the rapid response and accurate identification of the flame signal. Features Using high-speed, low-consumption and high-performance 32-bit data processing chip Excellent resistance to radio frequency and electromagnetic interference Perfect patent algorithm, fast response, high stability, strong anti-false alarm ability Detection angle of 120° The longest detection distance can reach 30 meters Multi-level sensitivity settings to meet the needs of different occasions Magnetic bar adjusts sensitivity, no need opening the cover on site Explosion-proof design, suitable for hazardous areas in many types of industrial sites Application Heavy industry applications, tunnel industry, oil and gas tank farm, power industry and petrochemical industry, etc.
