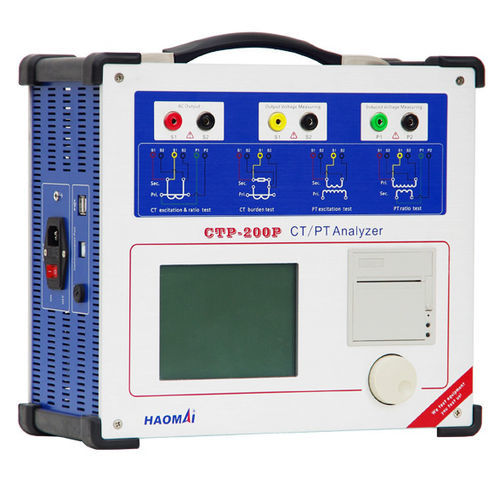

Voltage analyzer CTP-200P CT/PT

portable

CT/PT Analyzer CTP-200P is capable of testing Protection CTs, Measuring CTs, TP class CTs and inductive PTs according to IEC61869-2(IEC60044-1,60044-6), IEC61869-3(IEC60044-2), IEEE/ANSI C57.13 etc. test standards. It allows to test the knee-point voltage up to 40kV CTs and PTs on-site in power grids or in manufacturers' production facilities or test labs. The CT/PT Analyzer CTP-200P is the revolutionary testing system for various CTs and PTs according to IEC and IEEE/ANSI standard. The Analyzer can automatically complete the test within seconds by one click of the patented multifunctional rotary mouse. It allows to test the knee-point voltage up to 40kV CTs and PTs on-site in power grids or in manufacturers' production facilities or test labs. The main features of CT/PT Analyzer CTP-200P are as follows: ●Able to test Protection CTs, Measuring CTs, TP class CTs and inductive PTs ●Test excitation characteristic and error curve based on low-frequency measurement principle ●Measure ratio, polarity, ratio error and phase displacement error based on voltage method ●Adopt patented multifunctional rotary mouse to replace the keypad ●Adopt 5.7 inches LCD screen for display ●Adopt DSP, ARM and embedded LINUX operation system ●Both local test and PC remote test available ●Higher measurement accuracy: 0.05 % ●Print test results directly by built-in thermal printer ●Small and light weight (9kg / 19.84 lbs) for easy transport
