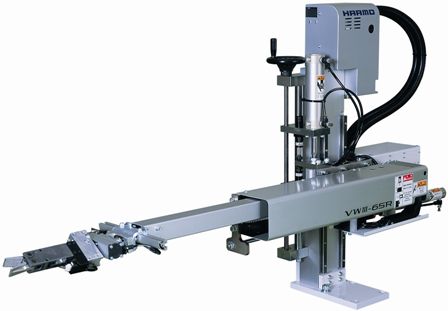

Cartesian robot VWIII series
2-axisfor injection molding machines

Cartesian robot
Cartesian robot
Cartesian robot
Cartesian robot
Add to favorites
Compare this product


Characteristics

Type
Cartesian
Number of axes
2-axis
Application domain
for injection molding machines
Payload

2 kg (4.409 lb)

Reach

450 mm, 650 mm, 800 mm (17.72 in)

Description

Reliable proven robots with telescopic arm for compact design ●New controller HRS-30. ●Exclusive in the industry! Space saving telescopic type arm. ●More space saving and affordable price. ●Lining up 12 types; conventional 4 types, 800 stroke type, and  swing-type. ●Gripper slide feature for hoop molding. ●Built-in controller for space saving (except T type) ●A vertical home position wheel ●Linear guides on vertical and horizontal axes for high rigidity  (40% more) ●Optional slim gripper ●Optional 120mm extension on the vertical home position (standard in  the 800 stroke type)
