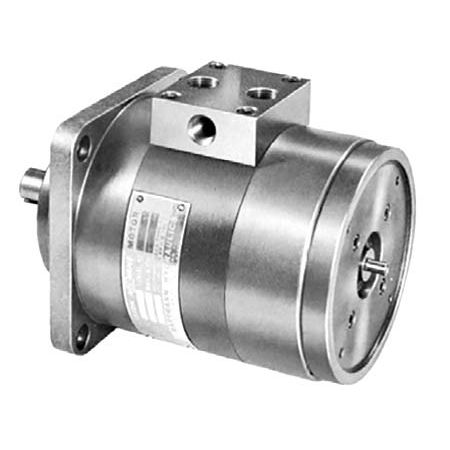

Rotary vane hydraulic motor HT-100

The Rol-Vane Hydraulic Motor is a self-Lubrication provided by the driving fluid with balanced pressure areas. It has a minimum speed that distinguish by the fluid control device. It is efficient and convenient in applying variable speed rotary hydraulic power. It has a symmetrical reversibility and linear output torque. The installation data of filtration follows good hydraulic practice for system pressures above 1000 psi. A 10 micron filtration ahead of the motor is required, whereas the mounting position has no restrictions. Also, Maximum Rate of Oil Temperature change 7°F./min while the temperature recommended has an operating range from 100°F to 130°F.
