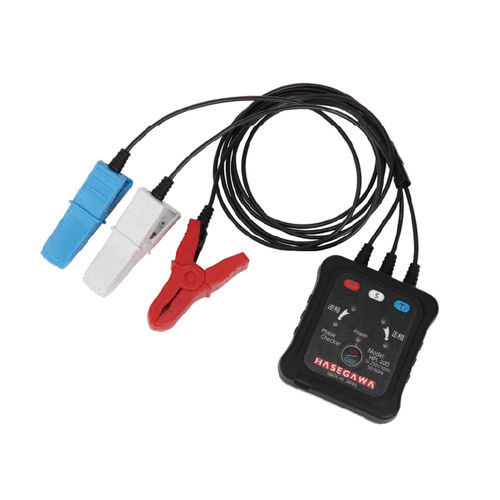

Phase tester HPL-200

insulationvoltagefor cables

Overview

• Single unit for both in-phase and different-phase checks on low-voltage three-phase systems.

Key functions

• Live-part display function: differentiates charging status (voltage to ground ≥ 80 V) and indicates clip connection failure.
• Non-contact checking: phase rotation and in-phase/different-phase checks from above insulated cables without removing insulation.
• Applicable conductor range: 2 mm²–100 mm² (finished external diameter ø2.8 mm–22 mm).
• Rear magnet enables hands-free checking.

Connection method
Instructions and guidance for correct use when performing clamping and non-contact checks are provided to ensure reliable phase identification.

Example indications
Illustrative indications show how phase, in-phase/different-phase status and live-part detection are displayed during inspection to assist troubleshooting and verification.

Electrical
Type: AC
Voltage range: 80–600 V (three-phase)

Technical specifications

• Model: HPL-200
• Application: Low-voltage phase tester for three-phase systems
• Voltage measurement range: 80–600 V (three-phase)
• Detection: Live-part display for charging status (detects voltage to ground ≥ 80 V) and clip connection failure indication
• Modes: Non-contact phase rotation check and in-phase/different-phase check
• Connection: Insulated wire clamping type with option for non-contact checking from above insulated cables
• Applicable conductor cross-section: 2 mm²–100 mm²
• Applicable finished external conductor diameter: ø2.8 mm–22 mm
• Hands-free support: Rear magnet for hands-free checking
• Indicators: Visual indications for phase, rotation and live-part status
