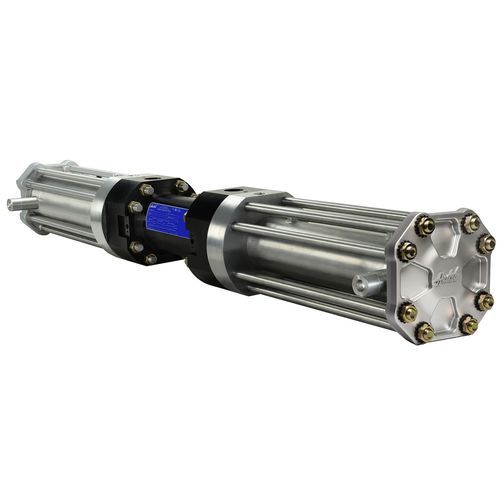

Piston pressure booster H24 series

hydrogenself-lubricatingtwo-stage

Hydraulic Driven Gas Boosters - Two Stage and Double Acting Models H24 Designed to compress a wide range of gases up to pressures of 1034 bar (15.000 psi) Constructed from hydrogen suitable materials to resist hydrogen embrittlement. Suitable for constant 24/7 operation or daily intermittent use when demand fluctuates. Unique specially designed seals are self-lubricating and need no further lubrication ensuring the cleanliness of the gas. Multiple stages allows booster to operate with higher gas compression ratios than a single stage booster can achieve. Constructed from hydrogen suitable materials to resist hydrogen embrittlement. Suitable for constant 24/7 operation or daily intermittent use when demand fluctuates. Unique specially designed seals are self-lubricating and need no further lubrication ensuring the cleanliness of the gas. Vented distance piece and a series of oil and wiper seals insures hydraulic oil stays in the hydraulic drive and does not get into the gas section. Cycle rate can be varied by varying the flow of the hydraulic oil from the hydraulic power unit. Suitable for a range of dynamic inlet pressures to accommodate various different applications. Available as a standalone piece of equipment or as a packaged solution provided by the H-Drive System Module. Available as a single stage configuration or a two stage configuration when higher ratios of compression are required. ATEX certified – EX II 3G II C
