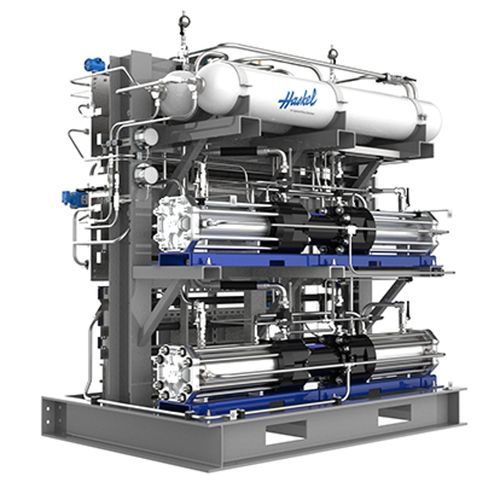

Hydrogen gas compressor station HSM series

pistonstationary

Safely and reliably compress gaseous hydrogen to high pressures The H-Drive System Module (HSM) is a next-generation hydrogen compression solution from Haskel—engineered to meet the demands of system builders and integrators. Designed for flexibility and simplicity, the HSM enables easy integration into hydrogen refueling stations, production sites, and industrial applications. Powered by two hydraulic driven boosters to provide two stages of compression Provides the flexibility to provide an integrated or detached hydraulic drive system Generates pressures up to 950 bar and flowrates to 63kg H2/hr As a flexible, certified and compact compression module built to simplify integration and accelerate hydrogen infrastructure deployment. As a gas compressor skid, HSM offers: Hydrogen service certified to ATEX EX II 3G IIC Pressure output: up to 500 or 950 bar Flowrate: up to 63 kg/hr at higher inlet pressures Hydraulic-driven, two-stage compression Modular configuration: ECM, cooling module, and hydraulic power unit flexibility Every component of the HSM is designed with reliability and safety in mind: Integrated heat exchangers to manage high gas outlet temperatures (up to 160°C) Pressure and temperature sensors, isolation valves, and relief systems Pneumatic control system operated via compressed air for valve actuation Bypass circuit monitoring to track seal wear and plan maintenance
