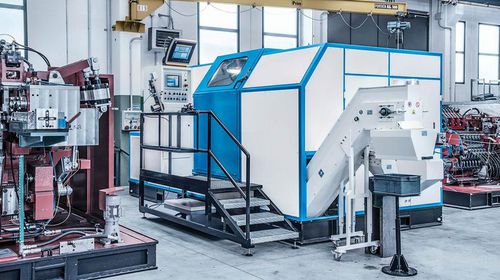

CNC cold forming machine Carlo Salvi CS 516

With the 5-station Progressive Header CS 516 parts with extremely complex shapes which have special requirements for shapes, features and tolerances can be produced with wire diameter up to 16 mm at rates of up to 160 parts per minute. The press is also available in the CS 516 WS version, which is equipped with a pre-heating induction system to allow the use of material like titanium and super alloys, that required pre-heating to be formed. 5-stations Coldformer 16 mm Max. wire diameter 160 parts Output per minute 1550 kN Max. heading tonnage Carlo Salvi Progressive Headers CS 516 Benefit from the following advantages For components with extremly complex shapes For components with special requirements on shape, features and tolerances For special screws, bolts, solid, semi-tubular and fully tubular components Trimming station on last two stations
