Olive oil production line Olive Premium 55

automatedautomatic

Overview

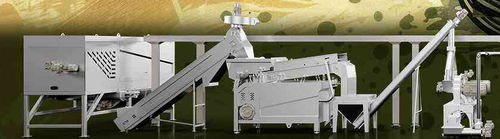

The HAUS Olive Premium production plant is an Industry 4.0–oriented olive oil processing line engineered to maximise yield and preserve oil quality. The design pairs ergonomic operation with automated hygiene and reduced water and air exposure to the paste and oil.

Key Innovations Include

• Advanced washing system: olives conveyed on a food-grade belt with a targeted air blower to reduce water use and surface contamination.
• New-generation crushing: knife (shearing) crusher developed to extract oil with greater flavour and phenolic content; front-cover nozzle washing for effective cleaning.
• Enhanced malaxing: malaxer equipped with nozzle washing, larger access windows and a front display for paste temperature, water temperature and mixing time.
• Efficient decanting: decanter with centrifugal oil-level adjustment operable during production to minimise air contact and lower residual oil at day end.

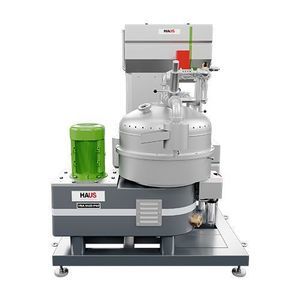

• Automated hygiene: automatic CIP (Clean-In-Place) in the separator to standardise cleaning and shorten downtime.

Innovation / Technology / Benefit

• Advanced Washing | Food-grade conveyor + Air blower | Minimal water, improved oil quality
• New Generation Crushing | Knife crusher with shearing force | Richer flavour and higher phenolic extraction
• Enhanced Malaxing | Nozzle washing + User-friendly display | Easier cleaning, precise process control
• Efficient Decanting | Centrifugal oil level adjustment | Reduced air contact, quality preservation
• Automated Hygiene | Automatic CIP system | Consistent hygiene, reduced cleaning time

TECHNICAL SPECIFICATIONS — Example model: Olive Premium 55
INSTALLED MOTOR POWER - 141 kW
PLANT EQUIPMENT
BELT - BKP-321 | BKP-821
WASHING - YE-50
CRUSHER - KS-22 Double Crusher
MALAXER - MS-5X1000
DECANTER - DDV 4742 CENTRIPETAL
SEPARATOR - VBA 5433-P40

Features / Technical specifications

• Industry 4.0 compliant plant design enabling smart operation and monitoring.
• Advanced washing with food-grade conveyor and air blower to minimise water contact.
• Knife crusher (shearing force) for higher flavour and phenolic extraction; front-cover nozzle washing for maintenance.
• Malaxer with nozzle washing, large access windows and front-panel display for paste temperature, water temperature and mixing time.
• Decanter with centrifugal oil level adjustment operable without stopping the machine to minimise air contact and reduce residual oil.
• Automatic CIP system integrated in the separator for automated hygiene and reduced cleaning time.
• Example installed motor power (Olive Premium 55): 141 kW.
• Example plant equipment identifiers: Belt BKP-321 / BKP-821; Washing YE-50; Crusher KS-22 Double Crusher; Malaxer MS-5X1000; Decanter DDV 4742 CENTRIPETAL; Separator VBA 5433-P40.
• Designed to streamline operations, facilitate maintenance and maximise final oil quality.
