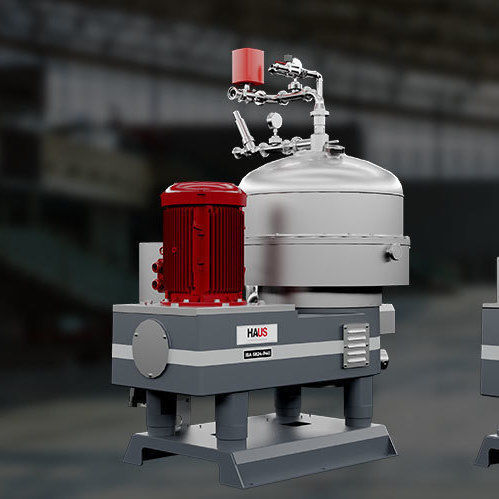

Process centrifuge I series

verticalfor petroleum productsfor the food industry

Product overview
HAUS I Series industrial centrifugal separators are engineered for continuous oil separation in industrial processes. The I Series delivers high centrifugal force and efficient phase separation, and is suitable for vegetable oils, waste oil treatment, oil polishing and animal oil extraction. Components and seals are selected for high-temperature operation.

Materials & Durability
Constructed with corrosion-resistant duplex stainless steel components, HAUS I Series separators include high-temperature sealing elements. Critical high-speed bowl parts are wear resistant and feature replaceable bowl and piston erosion plates for easier maintenance.

Performance & Energy Efficiency
I Series separators are designed for continuous duty to ensure stable product quality. They integrate modern separation technology with low power consumption and fast discharge systems. Units are compatible with Cleaning In Place (CIP) processes for simplified cleaning.

Application — Product Type — Key Feature
Vegetable Oils — Coconut oil, Palm oil — High separation efficiency
Waste Oils — Industrial waste oil treatment — Corrosion-resistant duplex steel
Oil Polishing — Oil purification processes — Continuous operation capability
Animal Oils — Fish oil and other animal oils — High-temperature resistant sealing

Product features

• Corrosion-resistant duplex stainless steel construction
• Designed for high-temperature applications
• Wear-resistant design with replaceable erosion plates
• Fast and effective discharge system
• High separation efficiency for continuous processes

Technical specifications

• IBA 6822-PC40: Installed motor power: 45 kW; Dimensions (L*W, H): 2010x1500, 2450 mm; Weight: 2.450 kg
• IBA 6821-K40: Installed motor power: 45 kW; Dimensions (L*W, H): 2000x1500, 2350 mm; Weight: 2.650 kg
• IBA 4022-PC40: Installed motor power: 11 kW; Dimensions (L*W, H): 1500x1090, 1830 mm; Weight: 900 kg
• IBA 5014-PC40: Installed motor power: 11 kW; Dimensions (L*W, H): 1220x1220, 1870 mm; Weight: 1.250 kg
• IBA 6822-P40: Installed motor power: 45 kW; Dimensions (L*W, H): 2010x1500, 2450 mm; Weight: 2450 kg
• IBA 5432-P40: Installed motor power: 22 kW; Dimensions (L*W, H): 1640x1250, 2150 mm; Weight: 1400 kg
• IBA 4022-P40: Installed motor power: 11 kW; Dimensions (L*W, H): 1500x1090, 1790 mm; Weight: 900 kg
• IBA 5431-K40: Installed motor power: 22 kW; Dimensions (L*W, H): 1640x1330, 2050 mm; Weight: 1400 kg
• IBA 5432-PC40: Installed motor power: 22 kW; Dimensions (L*W, H): 1640x1260, 2150 mm; Weight: 1400 kg
• IBA 5433-P40: Installed motor power: 22 kW; Dimensions (L*W, H): 1560x1430, 2050 mm; Weight: 1400 kg
• IBA 5434-PC40: Installed motor power: 22 kW; Dimensions (L*W, H): 1560x1350, 2050 mm; Weight: 1400 kg
• IBA 6824-PC40: Installed motor power: 45 kW; Dimensions (L*W, H): 2010x1600, 2350 mm; Weight: 2450 kg
• IBA 4024-PC40: Installed motor power: 11 kW; Dimensions (L*W, H): 1570x1030, 1730 mm; Weight: 900 kg
• IBA 4021-K40: Installed motor power: 11 kW; Dimensions (L*W, H): 1500x1040, 1730 mm; Weight: 900 kg
• IBA 4023-P40: Installed motor power: 11 kW; Dimensions (L*W, H): 1570x1260, 1760 mm; Weight: 900 kg
• IBA 8324-PC40: Installed motor power: 75 kW; Dimensions (L*W, H): 2270x2130, 2710 mm; Weight: 5120 kg
