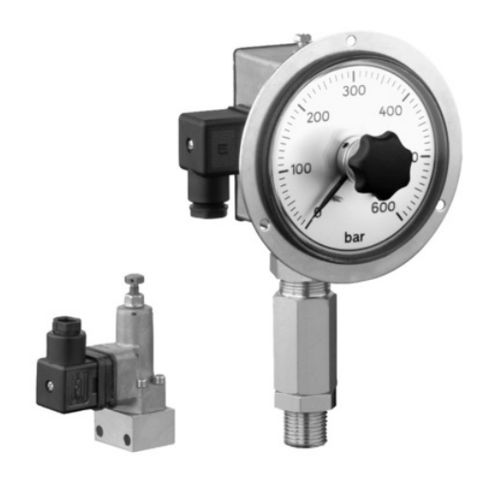

mechanical pressure switch / electronic / for hydraulic applications / compact
DG series

{{requestButtons}}

Characteristics

  • Technology:

    mechanical, electronic

  • Applications:

    for hydraulic applications

  • Other characteristics:

    compact, adjustable, screw-in

  • Pressure range:

    400 bar, 600 bar, 700 bar (5,801.51 psi)

Description

Pressure switches are hydraulic accessories. They close or open electrical contacts when under pressure.

The pressure switches are used to issue an electrical switching command or signal for further work steps when a predefined pressure value is reached. Two independent switching points can be programmed.

The DG 7 pressure switch device has an IO-Link communication interface. The parameters of the device can only be adjusted using IO-Link via a PC or memory module.

Features and benefits:
Two switch outputs as normally closed contact or normally open contact, PNP or NPN programmable
Process data, output signal and diagnostic messages available via IO-Link
Compact design
Shorter commissioning times
Intended applications:
Mobile hydraulics
Industrial hydraulics
