Electrically-powered hydraulic power pack MPN, MPNW series
for machine toolscompact

electrically-powered hydraulic power pack
electrically-powered hydraulic power pack
Add to favorites
Compare this product


Characteristics

Power source
electrically-powered
Applications
for machine tools
Other characteristics
compact
Operating pressure

700 bar (10,153 psi)

Nominal power

2 kW, 3 kW, 4 kW (3 hp)

Flow rate

25.29 l/min, 108 l/min (6.68 us gal/min)

Description

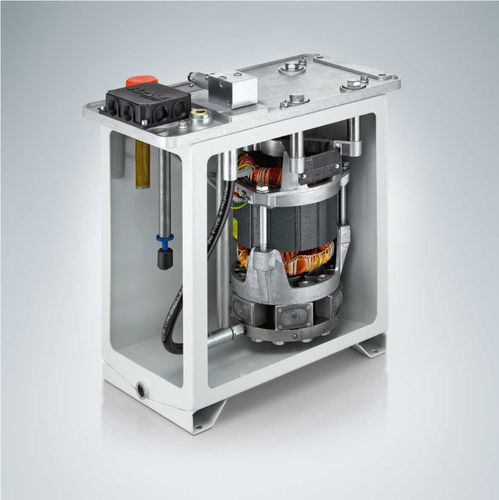

The ready-for-connection compact hydraulic power pack type MPN and MPNW includes an electric drive which runs in oil. The stator is securely attached to the housing (tank). The compact hydraulic power pack is suitable for hydraulic systems with the nominal operating modesS2, S3 or S6. The heat is dissipated via surface convection so that no external cooler is usually necessary. An application in continuous periodic operation S6 is possible depending on pump size and load, but only permissible if the oil tank is sufficiently large. Different tank sizes enable different usable oil quantities. Either single-circuit systems or dual-circuit systems can be selected. A radial piston pump, external gear pump or internal gear pump can be used as a hydraulic pump. The compact hydraulic power pack type MPN and MPNW is suitable for use as a highly compact control system, since connection blocks and valve banks can be directly mounted. Features and benefits: Long lifetime and high reliability Resource-saving due to small oil filling volume Tailored range of valves and range of accessories from modular system Intended applications: Machine tools Wind turbines and hydroelectric plants Presses and other shaping machines Lubrication systems
