Electrically-powered hydraulic power pack A series
oilpumpfor automobiles

Add to favorites

Compare this product

Go to the HAWE Hydraulik SE website for more information

Characteristics

Power source

electrically-powered

Applications

oil, pump, for automobiles

Other characteristics

compact, mini, low-noise, modular

Operating pressure

Max.: 210 bar
(3,046 psi)

Min.: 0 bar
(0 psi)

Nominal power

250 W
(0.3 hp)

Flow rate

Max.: 3 l/min
(0.79 us gal/min)

Min.: 0 l/min
(0 us gal/min)

Tank capacity

Max.: 0.8 l
(0.2 gal)

Min.: 0.2 l
(0.1 gal)

Description

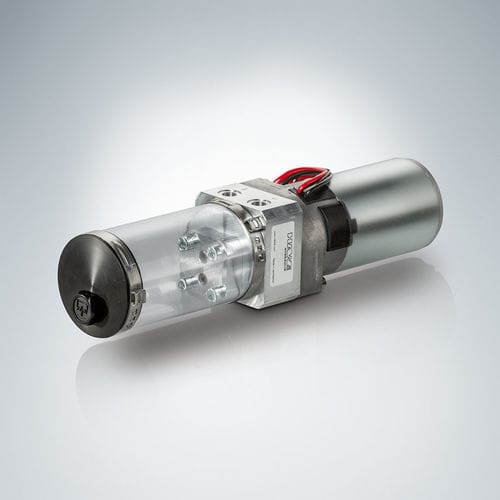

The Type-A compact hydraulic power pack is characterised by a modular design. An external gear pump is flange-mounted onto the equipment rack in the hydraulic power pack. The oil tank is a round, plastic tank with an M 14x1.5 filling screw. Version A100 comes with a choice of two equipment racks (Q and H), which can be used to mount a range of motors, pumps and tanks. The Type-TLC and SL valve banks in the modular system can be used to build ready-for-connection complete solutions. Features and advantages: DC and AC power supply Suitable for short period operation Can be installed flat or upright Quiet running
