Control hydraulic block B

Product description

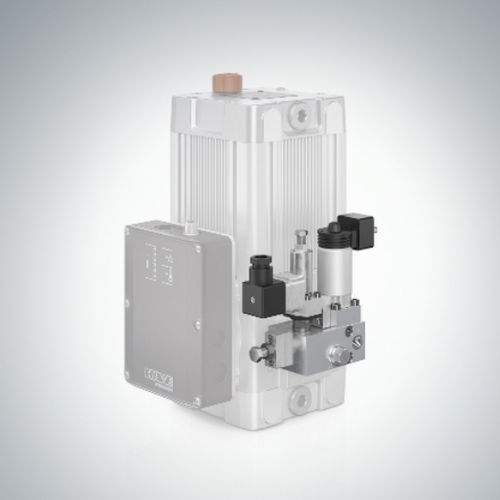

The connection block type B is designed for single-circuit pumps and provides the hydraulic interface between a hydraulic power pack and the consumer actuator. A pressure switch can be mounted directly on the block. Type B can be used with differential cylinders and combined with connection block type C for direct pipeline installation. Directional seated valves can be fitted directly or bolted to the block. Other connection block types with integrated function elements (e.g. AB and AL with pressure-limiting or shut-off valves) are compatible with type B.

Features and advantages

• Flexible interface between hydraulic power pack and consumer
• Space-saving by direct mounting on the hydraulic power pack
• Compact unit for control of single-acting or double-acting consumers
• Operating pressures up to 700 bar

Characteristics / technical specifications

• Suitable for single-circuit pumps

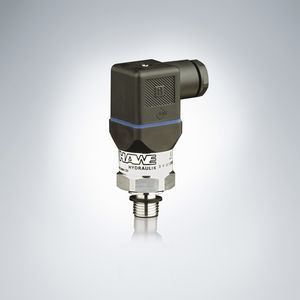

• Pressure switch can be mounted directly on the connection block
• Usable in combination with differential cylinders
• Can be combined with connection block type C for direct pipeline installation
• Directional seated valves: mounted directly or bolted on
• Compatible with other connection block types (e.g. AB, AL) with integrated function elements such as pressure-limiting and shut-off valves
• Compact unit for single-acting or double-acting consumer control
• Maximum operating pressure: up to 700 bar
