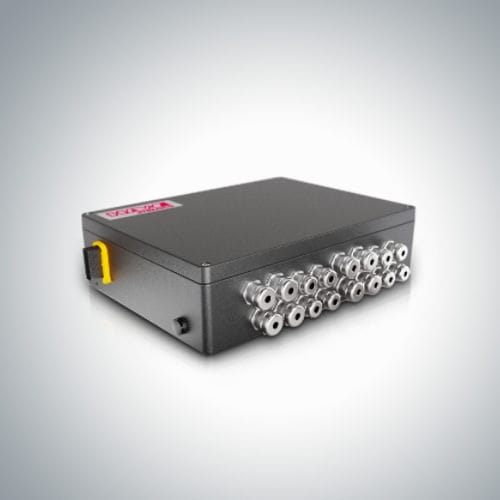

Mobile power distribution unit PDU

configurableDCmodular

Product description
The Power Distribution Unit (PDU) is designed to connect up to 4 or up to 8 batteries in parallel and interface them with an electrical drive system. The unit provides up to 5 or up to 10 outputs for consumers within the electrical installation. Lines from batteries are routed through safety fuses with individually configurable fuse values. Electrical power is distributed via one positive and one negative busbar. An optional Battery Control Unit (BCU) manages the parallel battery set and serves as a communication interface between the batteries and the drive system.

Technical specifications

• Connects up to 4 or up to 8 batteries in parallel
• Provides up to 5 or up to 10 outputs for consumers in the electrical system
• Lines routed via safety fuses with individually configurable fuse values
• Electrical power distributed via one positive and one negative busbar
• Optional Battery Control Unit (BCU) for management of parallel batteries and communication interface to the drive system

Typical applications

• Electric drive systems for industrial and commercial vehicles
• Stationary battery banks and modular energy storage systems
• Mobile machinery and equipment requiring redundant battery configurations
