Asynchronous motor
10000 V

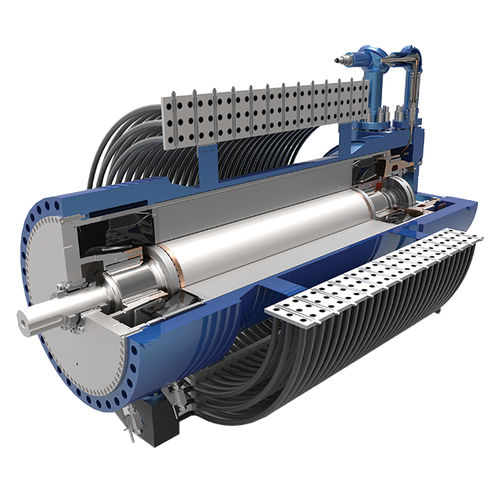

Asynchronous motor - Hayward Tyler® - 10000 V

Asynchronous motor - Hayward Tyler® - 10000 V - image - 2

Asynchronous motor - Hayward Tyler® - 10000 V - image - 3

Asynchronous motor - Hayward Tyler® - 10000 V - image - 4

Asynchronous motor - Hayward Tyler® - 10000 V - image - 5

Asynchronous motor - Hayward Tyler® - 10000 V - image - 6

Asynchronous motor - Hayward Tyler® - 10000 V - image - 7

Asynchronous motor - Hayward Tyler® - 10000 V - image - 8

Add to favorites

Compare this product

Characteristics

Type

asynchronous

Voltage

10000 V

Power

Min.: 0 W
(0 hp)

Max.: 6,000,000 W
(8,157.73 hp)

Rotational speed

Min.: 0 rpm
(0 rad.min-1)

Max.: 6,000 rpm
(37,699.1118 rad.min-1)

Description

Subsea Motors Deepwater fluid-filled subsea motors for critical pumping in the harshest offshore environments. Industry leading high power and voltage designs. Design Features of Hayward Tyler Subsea Motors Our deepwater subsea motors are built to the highest standards to provide exceptional performance and reliability at depths up to 3000m. Our engineered designs offer proven 8-year service intervals and have the following key features: Qualified subsea penetrator for ROV connection Wet-wound, water/glycol filled motor Enclosed to IP68 Independently qualified cable jointing method Internal pressure compensator provides positive motor pressure 8+ year service intervals Latest T3 product lubricated bearings (radial and thrust) Integral thrust bearing/aux. impeller for improved cooling Condition monitoring packages available Applications Hayward Tyler Subsea Motors are ideal for the following applications: Seawater Injection Multi-Phase Boosting Crude Oil Boosting Produced Water Re-Injection Deepwater Power Solutions
