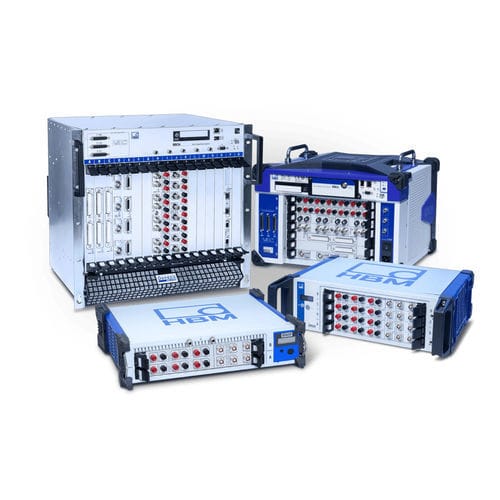

Speed data acquisition system GEN7i

mobileportablepanel

GenHS mainframes provide a real-time testing platform and multi-channel DAQ system with robust GenHS instrumentation for portable, benchtop, or linked installations. Genesis HighSpeed Mainframes With an Integrated PC HBM’s GEN3iA and GEN7iA are mainframes for your versatile portable and mobile data acquisition system. In addition, they provide all the features expected from a transient recorder and are ready to use immediately. The hardware combines a full-featured Windows® PC with a large, high-resolution touch screen and a robust acquisition unit. The systems can be equipped with either up to 3 (GEN3iA) or up to 7 (GEN7iA) data acquisition cards and provide a maximum of flexibility to best suit your application’s needs. The software Perceptions, which is included, completes the compound package. Powerful Standalone solution with full-featured Windows® PC and large, high-resolution touch screen Complete Perception software included with patented, extremely fast visualization of large amounts of data Expandable Multi-Mainframe capabilities with optical Master / Sync possibility and PTPv2 and IRIG synchronization Depending on the selected operating mode - continuous or transient - measurement data is either transferred directly to the SSD, transferred to an external PC or it is initially buffered on the acquisition cards’ high-speed RAM to offer transient recording without any throughput limitations. The easily removable hard disk (GEN7iA) for data archiving as needed and optionally for safekeeping of the operating system as well meets the highest security requirements to ensure more security for your data.
