Fabric cutting machine SA-VC3236

panelPLC-controlledautomatic

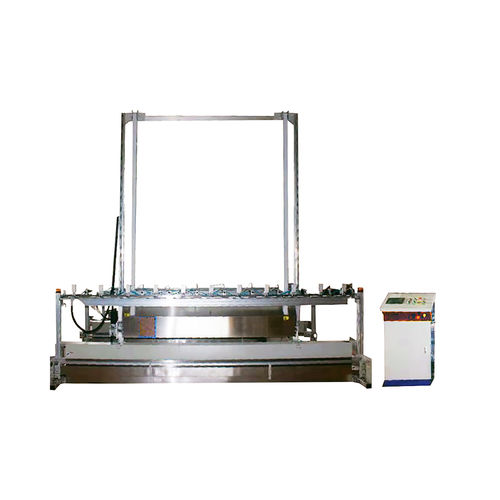

SA-VC3236 Auto Vertical Curtain Cutting Machine Description This vertical curtain cutting equipment will lift up the curtain panel vertically with its PLC controlled servo motor for high precision measurement up to 3mm. Once the curtain panel has been lifted up at certain height, the bottom part of the curtain will be pressed and the cutter will run horizontally to trim the excess unwanted fabric, making sure the curtain panel have the same final drop height to the required dimension. Technical Parameter - Model No - SA-VC3236 Power - 1.0 kW Voltage - 220 V – 1 PH Max. Working Height - 3200 mm Max. Working Width - 3600 mm Equipment Height - 3560 mm Production Capacity - 35 – 50 Curtain Panels / Hour Gross Weight - 750 kg
