Continuous machining head S-QQ01-SH

continuous machining head
continuous machining head
Add to favorites
Compare this product


Other characteristics

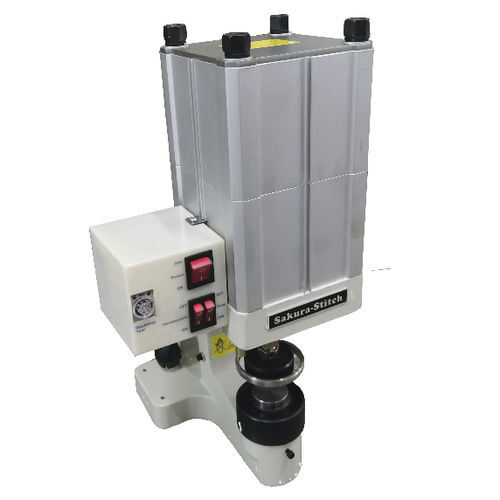

Large Eyelet Attaching Machine (Pneumatic) Description This machine head is pneumatic powered that can be used to punch an eyelet hole and to attach curtain eyelets to the curtain panel. It is installed with a large eyelet attaching air cylinder device to help operator attach large eyelet sizes easily. It is also equipped with a safety precaution sensor system to avoid hand injury that often happens in the manual conventional equipment. Technical Parameter - Model No - S-QQ01-SH Voltage - AC 220V Working Pressure - 0.15 – 0.8 mpa Eyelet Attaching Pressure - 400 – 1900 kg Eyelet Attaching Frequency - 1 – 3 seconds Air Displacement - 0.3 m3 / minute Vertical Working Space - 40 cm Positioning Method - Infrared Laser Pointer
