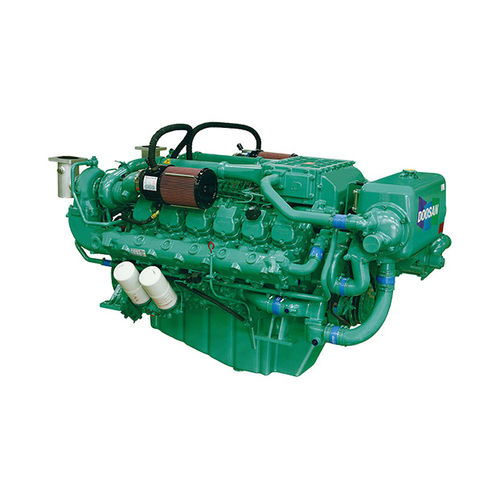

Diesel engine AD222TI12-cylinderturbochargedmarine
Add to favorites
Compare this product
Characteristics
- Type
- diesel
- Number of cylinders
- 12-cylinder
- Technology
- turbocharged
- Product applications
- marine
- Other characteristics
- compact
- Power
Min.: 446 kW
(606.39 hp)446 kW, 530 kW
(606.39 hp, 720.6 hp)Max.: 530 kW
(720.6 hp)- Rotational speed
1,500 rpm, 1,800 rpm
(9,424.778 rad.min-1, 11,309.7336 rad.min-1)- Displacement
21.9 l
(5.785 gal)- Weight
1,735 kg
(3,825.02 lb)- Length
1,945 mm
(76.6 in)- Width
1,231 mm
(48.5 in)- Height
1,196 mm
(47.1 in)
Description
A commercial, ancillary engine with similar specifications to the V222TI, it can be mounted on diverse types of boats.
Overview
This compactly designed, mechanically-controlled engine offers outstanding durability and fuel efficiency and ease of maintenance. We provide a variety of options to meet all our customers’ needs, and guarantee customer satisfaction based on the excellent performance of our engines.
Catalogs
No catalogs are available for this product.
See all of HD HYUNDAI INFRACORE‘s catalogsExhibitions
Meet this supplier at the following exhibition(s):
Other HD HYUNDAI INFRACORE products
Marine Auxiliary
