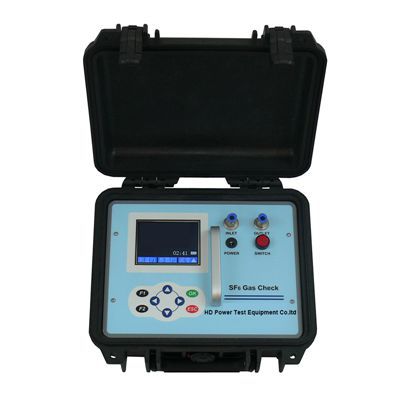

Electronic leakage detector HDDL-II

SF6with digital displayportable

HDDL-II SF6 Gas Quantitative Leakage Detector is applied to measure SF6  leakage on GIS and refilling equipment in power industry. It can real-time display the SF6 leakage with color LCD display . It is equipped with large record and built-in rechargeable lithium battery for AC and DC.   Application · High voltage switch-gear · Helicopter rotor blades · Gas transmission system · Fire extinguisher · Ventilation rate study · Hazardous material · Tank   Features   ● Large LED display with graphic interface ● With sound- light alarm, self-set the limit value of alarm ● High sensitivity and good stability ● Small size and Portable ● AC and DC for field operation   Specifications   ● Measurement range: 0～1000PPM  SF6 ● Sensitivity: ±0.1μL/L ● Resolution:0.1μL/L ● Storage temperature: -40～+70℃ ● Operation Environment :-30～+60℃ ● Alarm Mode: sound- light alarm, set the limit value of alarm ● Working voltage:220V AC±10%  50Hz，continuous working for several hours. ● Weight: 3kg.
