AC servomotor ICM09N series
400 V380 V220 V

AC servomotor - ICM09N series - HDD Sweden AB - 400 V / 380 V / 220 V
AC servomotor - ICM09N series - HDD Sweden AB - 400 V / 380 V / 220 V
AC servomotor - ICM09N series - HDD Sweden AB - 400 V / 380 V / 220 V - image - 2
AC servomotor - ICM09N series - HDD Sweden AB - 400 V / 380 V / 220 V - image - 3
AC servomotor - ICM09N series - HDD Sweden AB - 400 V / 380 V / 220 V - image - 4
AC servomotor - ICM09N series - HDD Sweden AB - 400 V / 380 V / 220 V - image - 5
AC servomotor - ICM09N series - HDD Sweden AB - 400 V / 380 V / 220 V - image - 6
Add to favorites
Compare this product
Go to the HDD Sweden AB website for more information

Characteristics

Type
AC
Voltage
400 V, 380 V, 220 V, 240 V, 48 V
Configuration
compact
Protection class
IP65, IP67, maintenance-free
Number of poles
20-pole
Applications
for robotics, industrial, packaging machine, for the textile industry, for machine tools, for medical equipment, for the automotive industry
Other characteristics
high-torque, low-inertia
Power

1.13 kW
(1.54 hp)

Min.: 0 kW
(0 hp)

Max.: 4,140 kW
(5,628.83 hp)

Torque

3.6 Nm, 7.7 Nm
(2.655224 ft.lb, 5.679229 ft.lb)

Min.: 16.4 Nm
(12.096019 ft.lb)

Rotational speed

3,000 rpm
(18,849.5559 rad.min-1)

Description

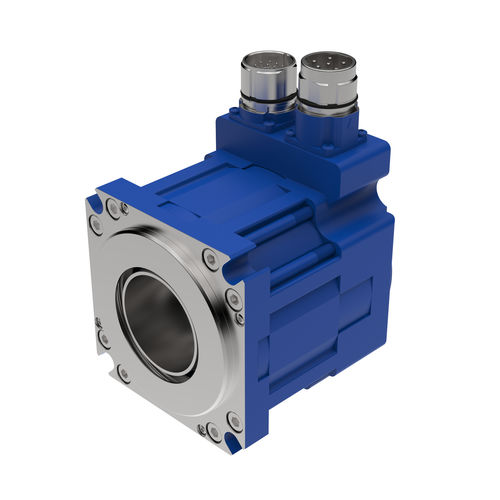

ICM 09N has a rated speed 3000 rpm, rated torque 3.6 Nm and the length of 87,2 mm. For shorter accelerations you get a peak torque of 16.4Nm. Weight is only 3,0 kg. Resolver, Hiperface, EnDat protocol and a number of drive compatible drive pinouts. The motors can be supplied with or without brake. IP 65 as a standard be can be ordered with IP 67. The technology with integrated coupling, enables even more compact installation of servo motors. For further information see datasheet for ICM 09N. Length* [mm]: 87.3 Flange size [mm]: 92 Mass** [kg]: 3.0 Inertia [kgcm^2]: 5.5 * Housing length without outgoing shaft and feedback cover. **With resolver feedback and without brake.
